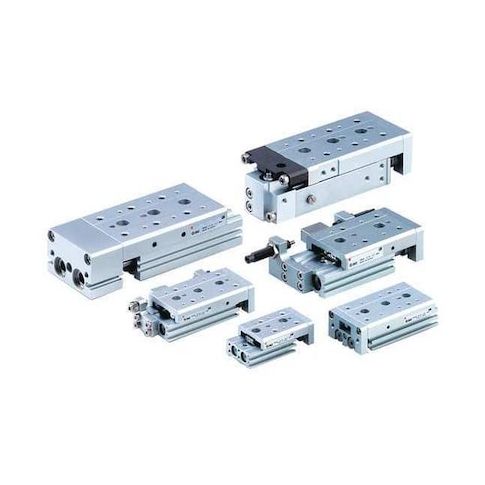

Precision Slide Table, 50mm Stroke MPN:MXS25-50AS
Precision Slide Table, 50mm Stroke
The Precision Slide Table from SMC is a high-performance component ideal for applications requiring precise motion control. With a 50mm stroke and 25mm cylinder bore diameter, this slide table offers a reliable and accurate solution for a variety of industries. Its ability to deliver a thrust force of 687N at 100psi and fast actuation times of 0.1 seconds make it suitable for applications such as assembly, testing, and inspection. The slide table's high accuracy and repeatability of +0.1mm ensure precise movement and reliability, making it an excellent choice for manufacturers seeking to improve efficiency and quality in their production processes.
Top product features:
- Stroke of 50 mm
- Thrust force of 687 N at 100 psi
- Accuracy of +0.1 mm and repeatability of +0.1 mm
Top product applications:
- Automotive manufacturing: The precision slide table can be used to assemble and inspect components such as engine blocks and cylinder heads.
- Medical device assembly: The slide table can be used to precision place and assemble medical devices such as implantable devices and surgical instruments.
- Aerospace assembly: The slide table can be used to assemble and inspect components such as aircraft engine components and satellite parts.
Slide Table, Maximum Stroke 50 mm, Cylinder Bore Diameter 25 mm, Series MXS, Thrust Force @ 100 psi 687 N, Minimum Actuation Time 0.1 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 1 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.94
