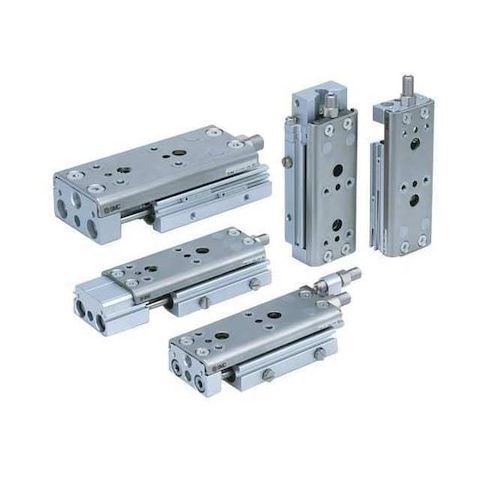

Precision Slide Table, 50mm Stroke MPN:MXQ25L-50AS
Precision Slide Table, 50mm Stroke
The Precision Slide Table from SMC offers precise and reliable motion control for a variety of applications. With a 50mm stroke and 25mm cylinder bore diameter, this slide table is ideal for use in medical devices, laboratory equipment, and precision machinery. Its high thrust force and fast actuation time make it suitable for applications requiring quick and precise movement. The table's accuracy and repeatability ensure consistent results, while its wide temperature range and durable seal material ensure reliable operation in demanding environments. Suitable for use in a range of industries, including medical, laboratory, and industrial automation.
Top product features:
- Stroke of 50 mm allows for precise movement and positioning.
- Cylinder bore diameter of 25 mm enables a high thrust force of 687 N at 100 psi.
- Seal material Buna-N provides a reliable and long-lasting seal.
Top product applications:
- Automotive Assembly Lines
- Machine Tool Industry
- Medical Device Manufacturing
Slide Table, Maximum Stroke 50 mm, Cylinder Bore Diameter 25 mm, Series MXQ, Thrust Force @ 100 psi 687 N, Minimum Actuation Time 0.1 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 1 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
