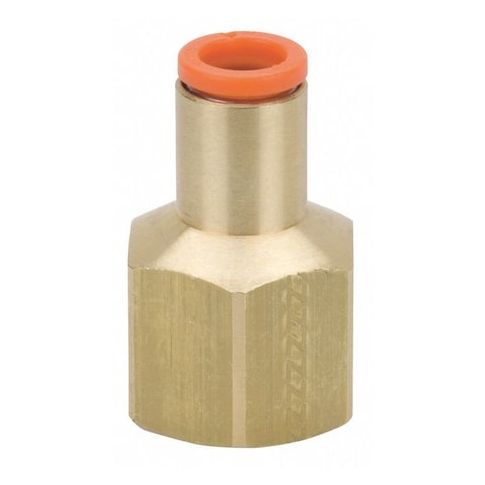

Push-Fit Adapter Fitting, Push-to-Connect x FBSPT, 8mm Tube OD, 1/4 in Pipe Size, Brass MPN:KQ2F08-02A
The SMC KQ2F08-02A Push-On Hose Fitting is a versatile and reliable component for industrial applications requiring pneumatic or hydraulic control. Its push-to-connect design facilitates quick and easy connection or disconnection of air or fluid lines, allowing for adjustments or reconfigurations as needed. With a durable resin body and a working pressure of 1.0 MPa, this fitting is suitable for a wide range of applications, including manufacturing, automation, and process control. Its compact design and compatibility with 8mm tube outer diameter make it an ideal choice for systems requiring precise fluid management and control.
Top product features:
- Push-On Hose Fitting facilitates connection or disconnection of air or fluid lines.
- The fitting is composed of a durable, synthetic material known for its versatility and resistance to wear and tear.
- The fitting is operational within the temperature range of -5 to 60 Degrees Celsius.
Top product applications:
- Pneumatic systems
- Hydraulic control systems
- Industrial applications requiring fluid line connections
The SMC - KQ2F08-02A is a Push-On Hose Fitting that facilitates connection or disconnection of air or fluid lines. This component is essential in various industrial applications, especially in systems requiring pneumatic or hydraulic control. Its function is for creating a connection while allowing adjustments or reconfigurations as needed.
Key Features:
Body Material: Resin – The fitting is composed of a durable, synthetic material known for its versatility and resistance to wear and tear.
Working Pressure: 1.0 MPa - Indicates the maximum pressure the fitting can handle under normal operating conditions.
Temperature Range: -5 to 60 Degrees Celsius – It is operational within the temperature range of -5 to 60 Degrees Celsius.
Port: R(PT) - The type of thread standard it adheres to, offering compatibility with corresponding connectors in hydraulic and pneumatic systems.
Applicable tube outer diameter: 8mm - Dictates the size of the tube the fitting is compatible with.
Shape: Straight – Illustrates the physical form and direction the connection follows, enhancing its adaptability to different layout plans.
Appearance: White – The color of the fitting, suitable for coordinating with specific aesthetics in system design.
Standard: RoHS – The product is RoHS standard compliant.
Additional Information
- Country of Origin: SG
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.05
