Air Gripper, 2 Finger, 12mm Bore MPN:MHF2-12D2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5002877

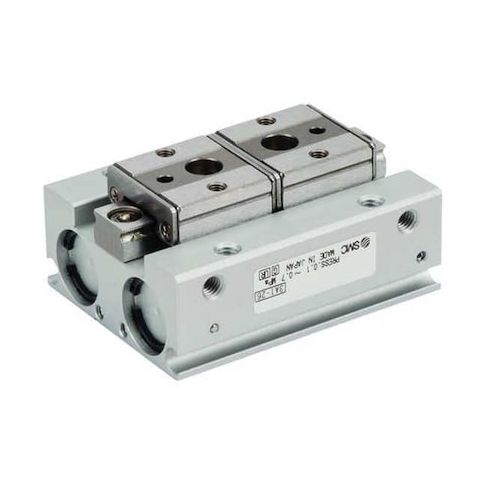

Air Gripper, 2 Finger, 12mm Bore
The SMC Air Gripper, Series MHF2, is a reliable and efficient solution for various industrial applications. With a 2-finger design and 12mm bore, this gripper excels at picking and placing small to medium-sized parts. Its wide operating pressure range and high temperature tolerance make it suitable for use in a variety of environments. The gripper's aluminum body and stainless steel fingers ensure durability and resistance to corrosion. Ideal for applications such as assembly, packaging, and material handling, this gripper provides precise control and consistent performance, making it an excellent choice for industries requiring high-speed and high-precision part handling.
Top product features:
- Two Finger Design: The product has two fingers that can grip and hold objects.
- 12mm Bore: The product has a 12mm bore that allows for the passage of air.
- Maximum Operating Pressure 101 psi: The product can operate at pressures up to 101 psi.
Top product applications:
- Automotive assembly lines
- Medical device assembly
- Food processing machinery
Air Gripper, Series MHF2, Open Width 48 mm, Stroke Length 48 mm, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 15 psi, Overall Length 40 mm, Overall Width 104 mm, Overall Height 25 mm, Body Material Aluminum, Finger Material Stainless Steel, Inlet Size M5 x 0.8, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 275 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.73
Product info last updated on March 29, 2026 10:55am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
