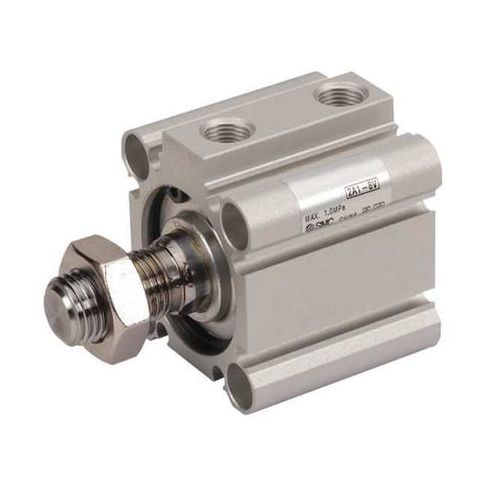

32mm Bore Compact Cylinder 75mm Stroke MPN:NCDQ2B32-75DMZ
32mm Bore Compact Cylinder 75mm Stroke
The SMC 32mm Bore Compact Cylinder is a versatile and reliable component ideal for a wide range of industrial applications, including automation, robotics, and material handling. Its compact design and aluminum body make it perfect for use in tight spaces, while its double-acting action and magnetic piston provide smooth and precise motion control. The cylinder's chrome-plated piston rod ensures durability and resistance to wear, making it suitable for high-cycle applications. With a stroke length of 75mm and a bore diameter of 32mm, this compact cylinder is a great solution for applications where space is limited and precision is key.
Top product features:
- Double Acting Cylinder Action
- Magnetic Piston for Improved Performance
- Chrome Plated Piston Rod Material Finish for Reduced Wear
Top product applications:
- Automotive Industry: This compact cylinder can be used in automotive applications such as power windows, sunroofs, and trunk lids.
- Medical Equipment: The compact design and magnetic piston make it suitable for use in medical equipment such as ventilators, patient lifts, and medical carts.
- Robotics and Automation: The double-acting cylinder can be used in robotic arms, grippers, and other automation equipment where precise control and movement are required.
Compact Cylinder, Body Material Aluminum, Cylinder Type Compact, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Through Hole, Bore Diameter 32 mm, Cushion Type None, Stroke Length 75 mm, Inlet Size 1/8 in, Air Inlet Type Rc, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Piston Rod Material Finish Chrome Plated, Mounting Location Front, Body Material Grade Not Applicable
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 1.14
Product info last updated on March 14, 2026 1:26pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
