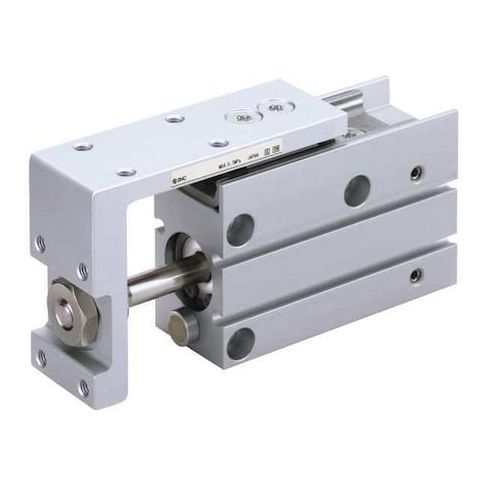

Mini Slide Table, 16mm Bore, 20mm Stroke MPN:MXH16-20Z
Mini Slide Table, 16mm Bore, 20mm Stroke
The SMC Mini Slide Table is a compact and precise linear motion component designed for a wide range of industrial applications. With a maximum stroke of 20mm and a bore diameter of 16mm, it provides a high level of accuracy and payload capacity of up to 10kg. Suitable for use in demanding environments with temperatures ranging from 14°F to 158°F, this miniature slide table is ideal for applications such as medical devices, laboratory equipment, and robotics. Its compact size and high precision make it an excellent choice for manufacturers seeking to increase efficiency and productivity in their production lines.
Top product features:
- 16mm bore allows for precise movement and control
- 20mm stroke provides a significant range of motion
- Nitrile seal material ensures reliable and durable performance
Top product applications:
- Packaging machinery
- Medical equipment assembly
- Automotive component manufacturing
Mini Slide Table, Maximum Stroke 20 mm, Cylinder Bore Diameter 16 mm, Maximum Payload 10 kg, Series MXH, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 8.7 psi, Seal Material Nitrile, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy 0.05 mm, System of Measurement Metric
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.56
