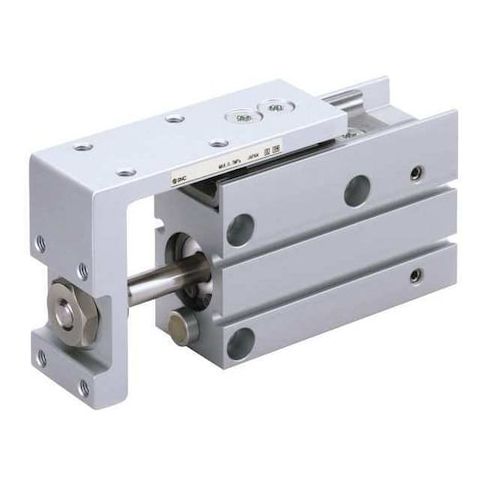

Mini Slide Table, 20mm Bore, 30mm Stroke MPN:MXH20-30Z
Mini Slide Table, 20mm Bore, 30mm Stroke
The SMC Mini Slide Table is a compact and reliable linear motion component ideal for precision applications in various industries. With a maximum stroke of 30mm and a cylinder bore diameter of 20mm, this slide table offers a payload capacity of 20kg and operates within a temperature range of 14°F to 158°F. Its high accuracy of 0.05mm makes it suitable for applications such as pick-and-place systems, assembly lines, and medical equipment. Its compact size and high precision make it an excellent choice for industries seeking reliable and efficient linear motion solutions.
Top product features:
- 20mm bore for precise movement and control
- 30mm stroke for extended travel and versatility
- 0.05mm accuracy for reliable and consistent positioning
Top product applications:
- Pneumatic assembly and testing
- Material handling and packaging
- Automotive parts manufacturing
Mini Slide Table, Maximum Stroke 30 mm, Cylinder Bore Diameter 20 mm, Maximum Payload 20 kg, Series MXH, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 7.25 psi, Seal Material Nitrile, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature 14 Degrees F, Accuracy 0.05 mm, System of Measurement Metric
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.96
Product info last updated on February 7, 2026 6:10pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
