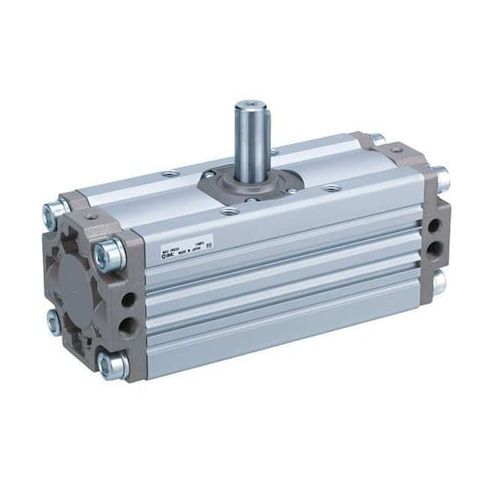

Rotary Actuator, 50mm Shaft, 90 Rotation MPN:CDRA1BS50-90Z
Rotary Actuator, 50mm Shaft, 90 Rotation
This 50mm shaft rotary actuator from SMC provides a reliable and efficient solution for various applications. With a maximum output torque of 18.5 N-m and a rotation angle of 90 degrees, it can handle demanding tasks with ease. Its compact size and lightweight design make it ideal for use in tight spaces, while its high operating pressure of 145 psi ensures consistent performance. Suitable for use with air, this actuator is perfect for applications in the robotics, medical, and industrial automation industries, offering precise control and reliability in a compact package.
Top product features:
- Rotary motion is achievable through a 90-degree rotation angle.
- The actuator provides a maximum output torque of 18.5 N-m.
- A magnetic piston is used in the design.
Top product applications:
- Automotive systems, such as steering and braking systems
- Medical equipment, such as dialysis machines and ventilators
- Industrial manufacturing, such as robotic assembly and material handling
Rotary Actuator, Actuator Style Single Rack, Maximum Output Torque 18.5 N-m, Rotation Angle 90 Degrees , Bore Diameter 50 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 15 mm, Shaft Length 33.5 mm, Inlet Size 1/8 in, Air Inlet Type RC, Cushion Type None, Magnetic Piston Magnetic Piston, Weight 1.3 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 14.5 psi, Minimum Operating Temperature 32 Degrees F, Standards RoHS Compliant, For Fluid Type Air
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 3.47
Product info last updated on February 27, 2026 5:50am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
