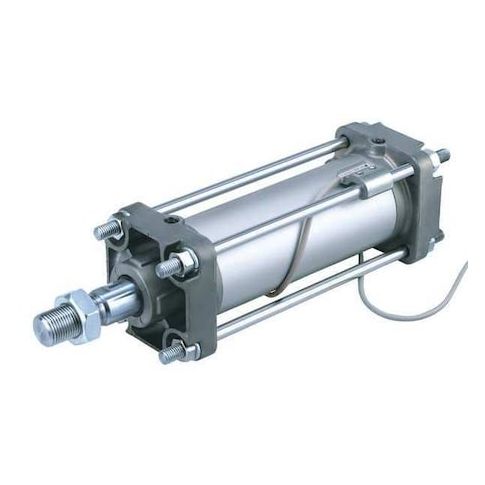

Tie Rod Cylinder, 80mm Bore, 250mm Stroke, Double Acting, Aluminum . MPN:CDA2B80-250Z
Tie Rod Cylinder, 80mm Bore, 250mm Stroke, Double Acting, Aluminum .
The SMC Tie Rod Cylinder is a high-performance, double-acting cylinder designed for demanding applications. With an 80mm bore and 250mm stroke, it provides a wide range of motion and flexibility. Made from durable aluminum, it features an anodized finish for added corrosion resistance. The magnetic piston ensures smooth operation, while the air cushion provides a soft stop. Suitable for use in various industries, including manufacturing, material handling, and robotics, this cylinder is ideal for applications requiring precise control and high-speed movement. Its compact design and single rod configuration make it easy to integrate into existing systems.
Top product features:
- Double Acting: The cylinder can move in both directions, allowing for more flexibility in applications.
- Air Cushion: The cylinder is equipped with an air cushion to reduce shock and vibration during operation.
- Magnetic Piston: The piston is magnetic, which can be used to attach or move metal components with the cylinder's movement.
Top product applications:
- Automotive suspension systems
- Industrial machinery and equipment
- Aerospace applications
Tie Rod Cylinder, Body Material Aluminum, Cylinder Type Tie Rod, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Tapped Hole, Bore Diameter 80 mm, Cushion Type Air Cushion, Stroke Length 250 mm, Inlet Size 1/2 in, Air Inlet Type Rc, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 7.91
Product info last updated on May 5, 2026 10:13am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
