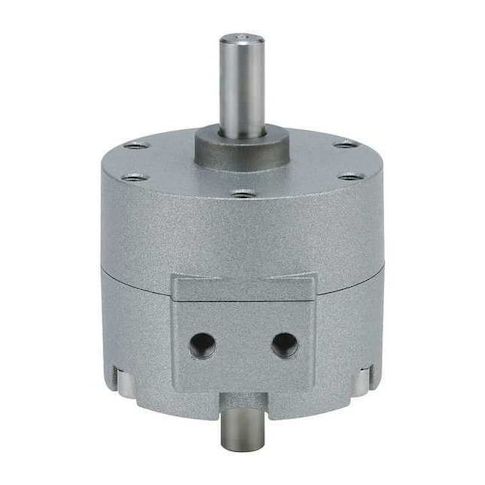

Vanetype Actuator, 30mm Shaft, 180 Rotate MPN:CDRB2BW30-180SZ
Vanetype Actuator, 30mm Shaft, 180 Rotate
The Vanetype Actuator is a compact and reliable rotary actuator designed for precise control in various applications. With a 180-degree rotation angle and 3.8 N-m maximum output torque, it can efficiently manipulate valves, pumps, and other equipment. Its small size and lightweight design make it ideal for use in tight spaces and on mobile devices. The actuator operates at pressures up to 145 psi and temperatures up to 140°F, making it suitable for industrial environments. Its rugged construction and magnetic piston ensure long-lasting performance and reliability, making it a valuable addition to many industries, including automation, robotics, and manufacturing.
Top product features:
- Rotary motion is achievable through 180 degrees of rotation
- Provides a maximum output torque of 3.8 N-m
- Features a shaft diameter of 8 mm for precise control
Top product applications:
- Automotive systems for precise control of components such as seat adjustment or power window operation
- Medical equipment for precise control of medical devices such as ventilators or dialysis machines
- Robotics and automation for precise movement and control of robotic arms or other mechanical systems
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 3.8 N-m, Rotation Angle 180 Degrees , Bore Diameter 30 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 8 mm, Shaft Length 17 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 0.43 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.59
Product info last updated on February 7, 2026 3:24am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
