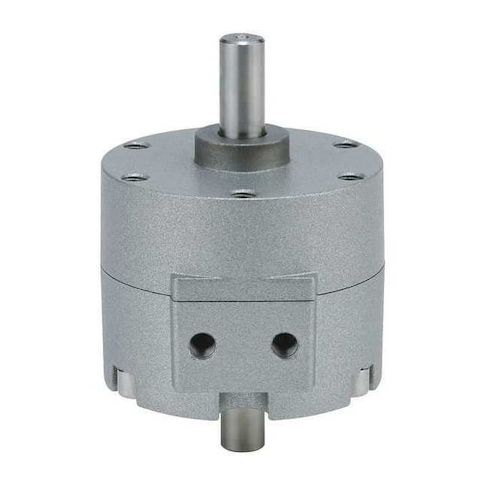

Vanetype Actuator, 40mm Shaft, 180 Rotate MPN:CDRB2BW40-180SZ
Vanetype Actuator, 40mm Shaft, 180 Rotate
The Vanetype Actuator is a reliable and efficient rotary actuator designed for precise control in a variety of applications. With a maximum output torque of 7.8 N-m and a rotation angle of 180 degrees, this actuator is ideal for use in industrial automation, robotics, and medical devices. Its compact size and lightweight design make it easy to integrate into systems, while its robust construction ensures reliable operation in temperatures up to 140°F. Suitable for use with air, this actuator is a versatile solution for applications requiring precise control and smooth motion.
Top product features:
- Rotary movement of 180 degrees
- Output torque of 7.8 N-m
- Magnetic piston for precise control
Top product applications:
- Automotive Seat Adjustment System
- Robotics and Automation Industry
- Medical Equipment Control Systems
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 7.8 N-m, Rotation Angle 180 Degrees , Bore Diameter 40 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 10 mm, Shaft Length 23.5 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 0.82 lb, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 1.19
Product info last updated on February 12, 2026 6:30pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
