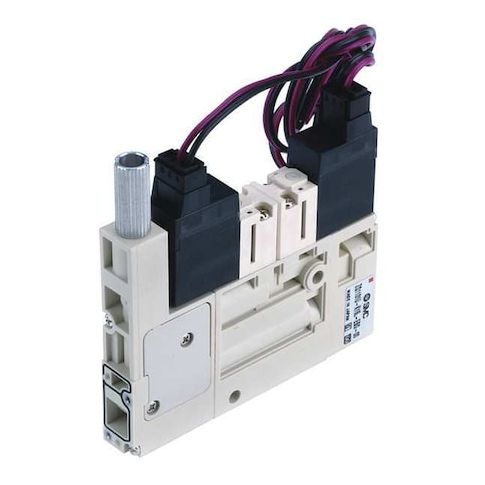

Vacuum Ejector, Single, M5 Pressure MPN:ZQ1051U-J15L-F
Vacuum Ejector, Single, M5 Pressure
The SMC Vacuum Ejector, Single, M5 Pressure is a reliable and efficient component for various applications, including pneumatic systems, medical devices, and laboratory equipment. Its compact design and low weight make it ideal for use in tight spaces. The ejector's maximum flow rate of 5 lpm and maximum operating temperature of 60°C ensure consistent performance in a range of environments. By regulating vacuum pressure and flow rate, the ejector helps to improve system accuracy and reduce energy consumption. Its versatility and reliability make it a valuable asset for industries requiring precise and controlled vacuum operations.
Top product features:
- Includes Muffler
- Needle Flow Control Valve
- Maximum Flow Rate 5 lpm
Top product applications:
- Automotive applications, such as vacuum brake boosters or vacuum fuel pumps
- Medical devices, where precise vacuum control is required
- Industrial processes, such as printing or coating, where vacuum ejectors are used to remove excess material
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Supply Valve, Maximum Flow Rate 5 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 87.2 mm, Overall Width 10 mm, Pressure Port Size 5 mm, Vacuum Port Size 5 mm, Vacuum Pressure @ 40 PSI -70 kPa, Vacuum Pressure @ 75 PSI -80 kPa, Valve Supply Voltage 24 V DC, Valve Type 1 NC Supply, Weight 95 g
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 5.30
- Package Height: 0.90
- Package Weight: 0.25
Product info last updated on February 8, 2026 5:17pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
