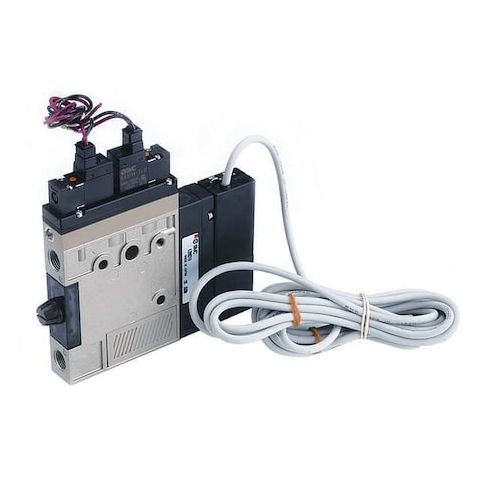

Vacuum Ejector, Single, 1/8 In NPT MPN:ZM131HT-K5L-E55L
Vacuum Ejector, Single, 1/8 In NPT
This versatile Vacuum Ejector from SMC is a reliable and efficient solution for various applications, including material handling, packaging, and manufacturing processes. Its high flow rate of 40 lpm and maximum operating temperature of 60°C make it suitable for demanding environments. The ejector's compact design and low weight facilitate easy integration into existing systems. Its features, including a built-in muffler, needle flow control valve, and release valve, ensure smooth and controlled operation. Ideal for use in industries such as automotive, electronics, and pharmaceuticals, this Vacuum Ejector is a valuable addition to any production line or process.
Top product features:
- Includes Muffler to reduce noise
- Needle Flow Control Valve for precise vacuum flow adjustment
- Vacuum Switch with 1 PNP Output for automated system control
Top product applications:
- Automotive Parts Manufacturing: The vacuum ejector can be used to remove excess adhesive or paint from automotive parts during the manufacturing process.
- Medical Device Assembly: The vacuum ejector can be used to remove excess adhesive or sealants from medical devices during the assembly process.
- Electronics Component Assembly: The vacuum ejector can be used to remove excess solder paste or flux from electronic components during the assembly process.
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Release Valve, Supply Valve, Vacuum Switch, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 111 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Switch Type 1 PNP Output, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -55 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Valve Supply Voltage 24 V DC
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.20
- Package Height: 0.80
- Package Weight: 0.60
Product info last updated on March 8, 2026 3:46pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
