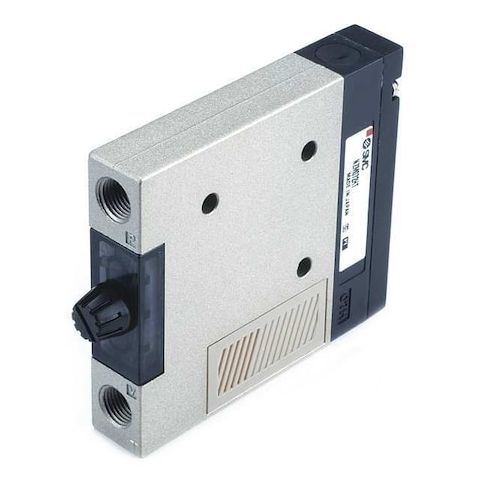

Vacuum Ejector, Single, 1/8 In NPT MPN:ZM052HT
Vacuum Ejector, Single, 1/8 In NPT
The SMC Vacuum Ejector is a versatile and efficient solution for various industrial applications. This compact device features a maximum flow rate of 18 liters per minute and operates at temperatures up to 60°C. With a maximum supply pressure of 72 psi, it's ideal for applications requiring precise vacuum control. The ejector's needle flow control valve allows for easy adjustment of vacuum pressure, making it suitable for use in assembly, packaging, and material handling systems. Its compact design and reliable performance make it an excellent choice for a wide range of industries, including automotive, aerospace, and medical device manufacturing.
Top product features:
- Includes Muffler to reduce noise
- Needle Flow Control Valve to regulate air flow
- Maximum Flow Rate of 18 lpm for efficient operation
Top product applications:
- Vacuum Ejector, Single, 1/8 In NPT from SMC is suitable for use in applications such as pneumatic conveying of powders and granular materials in the food processing industry.
- It can be used to eject material from a container or bin in applications such as pharmaceutical processing.
- This product can be used in applications such as textile manufacturing where it is used to remove loose fibers from a fabric.
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Maximum Flow Rate 18 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 88 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -45 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Weight 170 g
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.90
- Package Height: 0.80
- Package Weight: 0.75
Product info last updated on February 14, 2026 2:54pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
