Vacuum Ejector, Single, M5 Pressure MPN:ZQ1071U-J15L-EAG-00

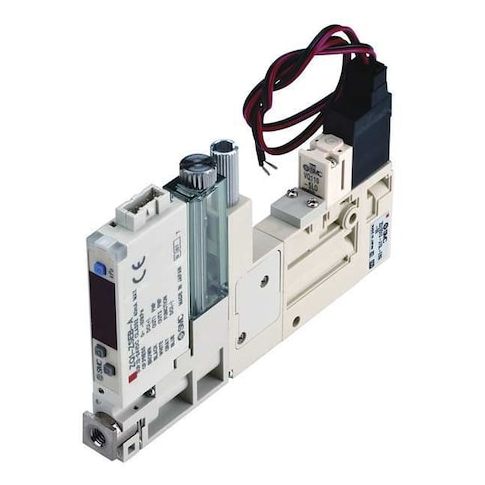

Vacuum Ejector, Single, M5 Pressure
The SMC Vacuum Ejector is a reliable and efficient solution for various industrial applications. This single-stage ejector is designed for use in applications where precise control and high flow rates are required. With a maximum flow rate of 10 lpm and operating temperature of 60°C, it can handle a wide range of tasks. The ejector's compact size and lightweight design make it easy to integrate into existing systems. Its use in applications such as packaging, medical devices, and laboratory equipment offers benefits including improved process efficiency and reduced waste. Its compact size also makes it ideal for use in space-constrained environments.
Top product features:
- Includes Muffler
- Needle Flow Control Valve
- 2 NPN Outputs
Top product applications:
- Automotive air conditioning systems
- Medical device packaging and sterilization
- Laboratory equipment and sample handling
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Supply Valve, Vacuum Switch, Maximum Flow Rate 10 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 107 mm, Overall Width 10 mm, Pressure Port Size 5 mm, Switch Type 2 NPN Outputs, Vacuum Port Size 5 mm, Vacuum Pressure @ 40 PSI -60 kPa, Vacuum Pressure @ 75 PSI -80 kPa, Valve Supply Voltage 24 V DC, Valve Type 1 NC Supply, Weight 109 g
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.90
- Package Height: 1.00
- Package Weight: 0.40
Product info last updated on January 14, 2026 12:06pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
