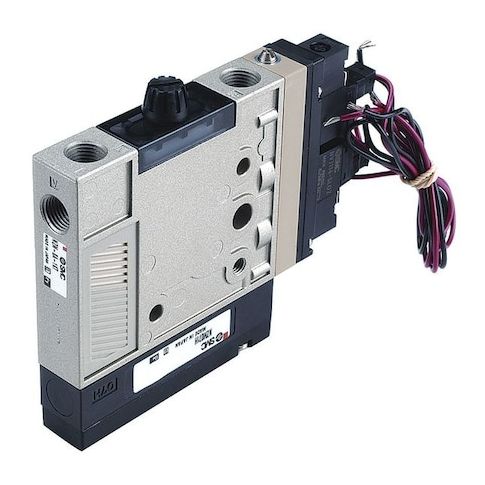

Vacuum Ejector, Single, 1/8 In NPT MPN:ZM131HT-K5LZ
Vacuum Ejector, Single, 1/8 In NPT
The SMC Vacuum Ejector is a compact and efficient solution for various industrial applications. This single ejector unit includes a muffler, needle flow control valve, release valve, and supply valve, making it a self-contained system. With a maximum flow rate of 40 liters per minute and operating temperature of 60 degrees Celsius, it can handle demanding tasks. Suitable for applications such as material handling, packaging, and manufacturing, the Vacuum Ejector offers improved process control and reduced noise levels. Its compact design and adjustable flow rate make it an ideal choice for a range of industries and use cases.
Top product features:
- Includes Muffler
- Has Needle Flow Control Valve
- Has Release Valve
Top product applications:
- Automotive Applications: Vacuum ejectors are used in the automotive industry to assist with tasks such as fuel tank venting and oil pan gasket sealing.
- Medical Equipment: In medical equipment, vacuum ejectors are used to remove fluids and gases from various devices, such as ventilators and dialysis machines.
- Robotics and Automation: Vacuum ejectors are used in robotics and automation to remove debris and dust from surfaces, as well as to assist with tasks such as pick-and-place operations.
Item Vacuum Ejector, Includes Muffler, Needle Flow Control Valve, Release Valve, Supply Valve, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 72 psi, Overall Length 98 mm, Overall Width 15.5 mm, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Size 1/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -55 kPa, Vacuum Pressure @ 75 PSI -84 kPa, Valve Supply Voltage 24 V DC, Valve Type 2 NC Supply and Release, Weight 250 g
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.50
- Package Height: 0.60
- Package Weight: 0.45
Product info last updated on January 16, 2026 8:44am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
