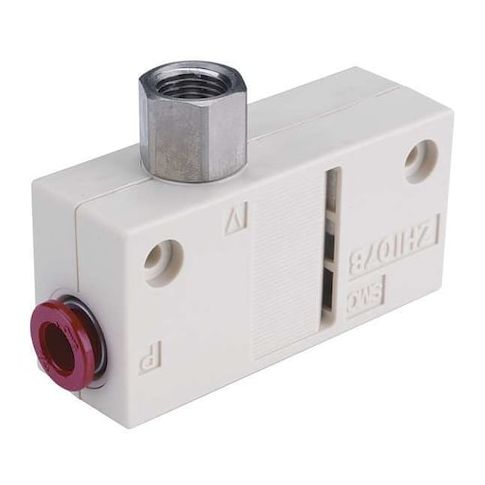

Vacuum Ejector, Inline, Box, 1/4 In Tube MPN:ZH05BLA-07-N01
Vacuum Ejector, Inline, Box, 1/4 In Tube
The SMC ZH Series Vacuum Ejector is a compact and efficient inline vacuum solution for various industrial applications. Suitable for use in cleanrooms, laboratories, and other sensitive environments, this ejector features a maximum flow rate of 8 liters per minute and operates at temperatures up to 60 degrees Celsius. Its maximum supply pressure of 87 psi and vacuum pressure of up to -48 kPa make it ideal for applications requiring precise control. The vacuum ejector is also equipped with a muffler for reduced noise levels. With a lead time of 10 days and a minimum order quantity of 1, this product is perfect for small-scale production and prototyping needs.
Top product features:
- Maximum Flow Rate 8 lpm
- Maximum Operating Temperature 60 Degrees C
- Includes Muffler
Top product applications:
- Vacuum Ejector, Inline, Box, 1/4 In Tube is suitable for use in automotive applications such as fuel system evacuation.
- It can be used in medical equipment to remove liquids or gases from a system.
- The Vacuum Ejector is also applicable for use in laboratory equipment to remove samples or reagents.
Item Vacuum Ejector, Includes Muffler, Maximum Flow Rate 8 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 87 psi, Overall Length 54 mm, Overall Width 19 mm, Pressure Port Size 1/4 in, Pressure Port Type Tube, Series ZH, Vacuum Port Size 1/8 in, Vacuum Port Type BSPT, Vacuum Pressure @ 40 PSI -20 kPa, Vacuum Pressure @ 75 PSI -48 kPa, Weight 28 g
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.90
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on March 5, 2026 2:35am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
