Low Profile Air Grpper, 8mm Bore MPN:MHF2-8D2
Low Profile Air Grpper, 8mm Bore

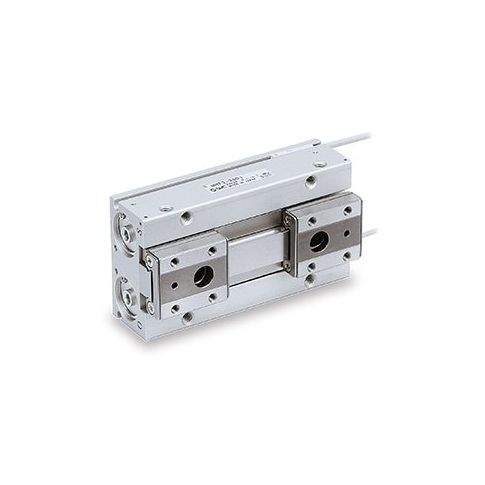

The Low Profile Air Gripper from SMC is a compact and reliable solution for a variety of applications, including material handling, assembly, and testing. Its 8mm bore and 80mm stroke length make it ideal for gripping small to medium-sized objects with precision and control. The gripper's aluminum body and stainless steel fingers ensure durability and resistance to corrosion, while its hard anodized finish provides a long-lasting and low-maintenance surface. With a maximum operating pressure of 101.53 psi and a temperature range of 14-140°F, this gripper is suitable for use in a range of environments and industries, including automotive, aerospace, and medical device manufacturing.
Top product features:
- Low Profile design allows for installation in confined spaces
- Finger material is made of Stainless Steel for resistance to corrosion
- Maximum Operating Pressure of 101.53 psi enables high force actuation
Top product applications:
- Assembly and Handling of Small Parts
- Automotive Component Manufacturing
- Medical Device Assembly
Air Gripper, Series MHF2, Open Width 32 mm, Stroke Length 80 mm, Maximum Operating Pressure 101.53 psi, Minimum Operating Pressure 21.76 psi, Overall Length 32 mm, Overall Width 72 mm, Overall Height 19 mm, Body Material Aluminum, Finger Material Stainless Steel, Inlet Size M3 x 0.5, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 120 g, Body Material Finish Hard Anodized, System of Measurement Metric
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 14, 2026 10:30am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
