Low Profile Air Gripper, 16mm Bore MPN:MHF2-16D1R
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405733

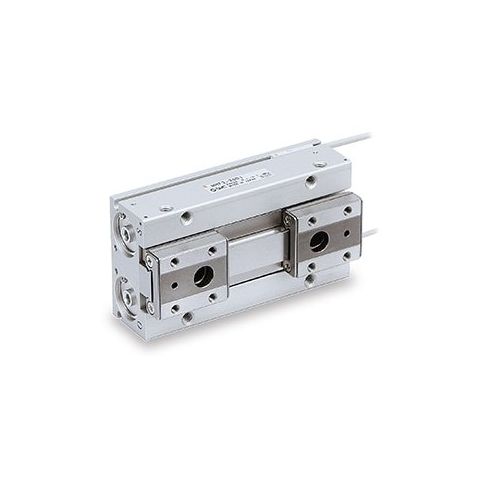

Low Profile Air Gripper, 16mm Bore
The Low Profile Air Gripper from SMC is a versatile and reliable component ideal for applications requiring precise control and minimal space. Its compact design, featuring a 32mm open width and 40mm stroke length, makes it suitable for use in robotics, automation, and material handling systems. The gripper's stainless steel fingers ensure durability and resistance to corrosion, while its aluminum body and hard anodized finish provide a robust and long-lasting construction. With a maximum operating pressure of 101.53 psi and a temperature range of 14°F to 140°F, this gripper is suitable for a wide range of industrial applications.
Top product features:
- Low profile design allows for compact installation in tight spaces
- Finger material made of stainless steel provides high durability and resistance to corrosion
- Nitrile seal material ensures secure grip and prevents air leaks
Top product applications:
- Assembly and Automation
- Pneumatic handling of small parts
- Vacuum and air gripper applications
Air Gripper, Series MHF2, Open Width 32 mm, Stroke Length 40 mm, Maximum Operating Pressure 101.53 psi, Minimum Operating Pressure 14.5 psi, Overall Length 50 mm, Overall Width 94 mm, Overall Height 33 mm, Body Material Aluminum, Finger Material Stainless Steel, Inlet Size M5 x 0.8, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 445 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 16, 2026 9:04am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
