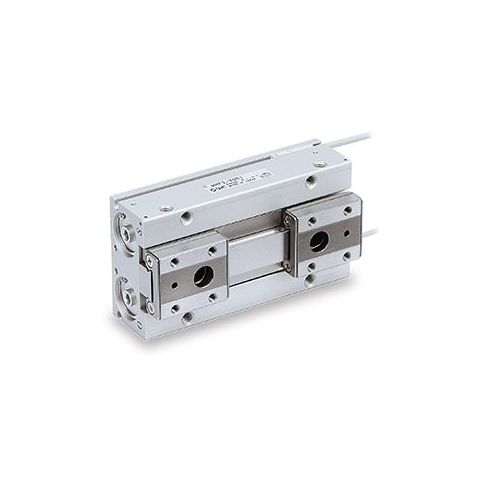

Low Profile Air Gripper, 16mm Bore MPN:MHF2-16DR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405690
Low Profile Air Gripper, 16mm Bore
The Low Profile Air Gripper from SMC is a compact and reliable solution for a variety of applications. With a 16mm bore and 20mm stroke length, it provides a precise and controlled grip for delicate or fragile items. Suitable for use in manufacturing, assembly, and testing environments, this gripper offers a high level of accuracy and reliability. Its aluminum body and stainless steel fingers ensure durability and resistance to corrosion, while its nitrile seal provides a tight seal against air pressure. Ideal for use in industries such as electronics, pharmaceuticals, and automotive, this gripper is a valuable addition to any production line.
Top product features:
- Low Profile design allows for compact installation in tight spaces
- Stroke Length of 20 mm enables precise gripping and releasing of objects
- Stainless Steel fingers provide high durability and resistance to corrosion
Top product applications:
- Assembly of small components in electronics manufacturing
- Assembly of delicate parts in medical device manufacturing
- Picking and placing small parts in the automotive industry
Air Gripper, Series MHF2, Open Width 16 mm, Stroke Length 20 mm, Maximum Operating Pressure 101.53 psi, Minimum Operating Pressure 14.5 psi, Overall Length 50 mm, Overall Width 72 mm, Overall Height 33 mm, Body Material Aluminum, Finger Material Stainless Steel, Inlet Size M5 x 0.8, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 350 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 22, 2026 6:34am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
