Low Profile Air Gripper, 20mm Bore MPN:MHF2-20DR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4405578

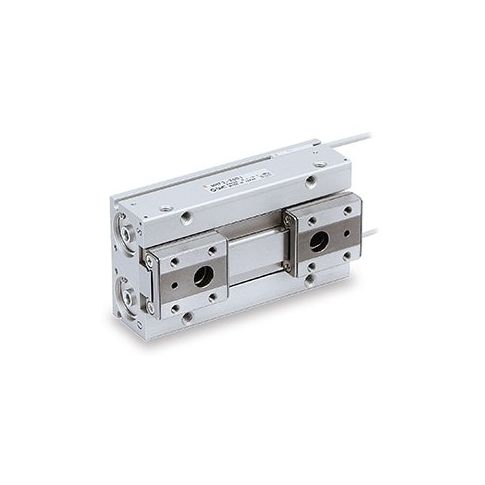

Low Profile Air Gripper, 20mm Bore
The SMC Low Profile Air Gripper is a compact and reliable solution for a wide range of applications. With a 20mm bore and stroke length, this gripper is ideal for handling small to medium-sized components in manufacturing, assembly, and packaging industries. Its low profile design allows for easy integration into tight spaces, while its aluminum body and stainless steel fingers ensure durability and resistance to corrosion. The gripper's adjustable pressure range and temperature tolerance make it suitable for use in various environments, from cold storage to high-temperature production lines.
Top product features:
- Low Profile design for reduced space requirements
- Stroke Length of 20 mm for precise gripping control
- Maximum Operating Pressure of 101.53 psi for high force gripping capability
Top product applications:
- Automotive manufacturing for assembly and inspection of small parts
- Medical device assembly and packaging
- Precision electronics assembly and component handling
Air Gripper, Series MHF2, Open Width 20 mm, Stroke Length 20 mm, Maximum Operating Pressure 101.53 psi, Minimum Operating Pressure 14.5 psi, Overall Length 62 mm, Overall Width 86 mm, Overall Height 41 mm, Body Material Aluminum, Finger Material Stainless Steel, Inlet Size M5 x 0.8, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 645 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on March 15, 2026 3:39pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
