Rotary Table, 0 to 190 Deg, 20mm Bore MPN:MSQB20R
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3391315

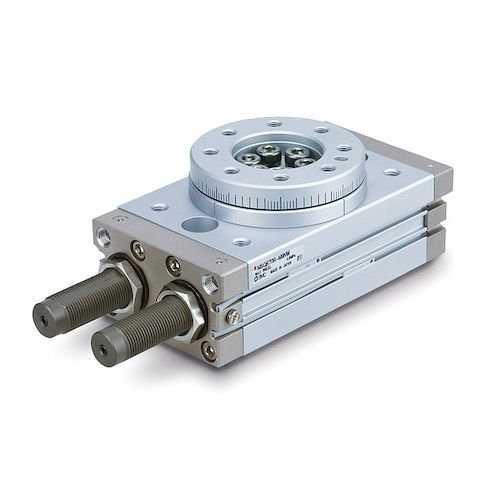

Rotary Table, 0 to 190 Deg, 20mm Bore
This rotary table from SMC provides precise and reliable motion control for a variety of applications. With a maximum operating pressure of 0.6 MPa and a maximum output torque of 3.66 N-m, it is suitable for use in robotic systems, machine tools, and other precision machinery. The table's 0 to 190-degree rotation range and 20mm bore diameter make it ideal for applications requiring high accuracy and repeatability. The shock absorber cushion provides smooth and stable operation, while the anodized aluminum alloy construction ensures durability and resistance to corrosion. This rotary table is perfect for manufacturers seeking to improve productivity and precision in their processes.
Top product features:
- 0 to 190 degree rotation capability
- 20mm bore diameter for precise fitting
- Cushion type shock absorber for smooth operation
Top product applications:
- Robotics and Automation
- Machine Tool and CNC Machining
- Automotive and Aerospace Manufacturing
Rotary Table, Bore Diameter 20 mm, Maximum Operating Pressure 0.6 MPa, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Maximum Output Torque 3.66 N-m, Cushion Type Shock Absorber, Table Material Finish Anodized, Body Material Finish Anodized, Minimum Rotation Angle 43 Degrees , Bearing Retainer Material Aluminum Alloy, Body Material Aluminum Alloy, Allowable Kinetic Energy 0.12 J, Table Size 20, Maximum Rotation Angle 190 Degrees , Overall Length 142 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.00
- Package Height: 2.50
- Package Weight: 2.21
Product info last updated on March 14, 2026 10:32am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
