Speed Control Valve, 8mm Tube, 3/8 In MPN:AS3201F-03-08S

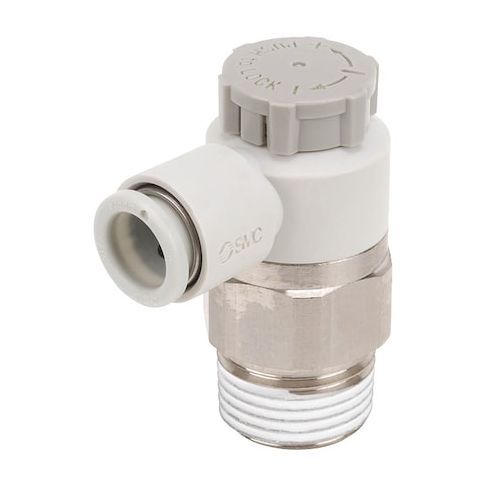

Speed Control Valve, 8mm Tube, 3/8 In
The SMC Speed Control Valve is a precision instrument for regulating air flow in industrial applications. With its 3/8 inch valve body and 8mm push-to-connect tube, this valve provides reliable control over air pressure and flow rates. Suitable for use in a variety of industries, including manufacturing, packaging, and material handling, the valve's metering direction and adjustable screw make it easy to fine-tune performance. Its nickel-plated brass/PBT construction ensures durability and resistance to corrosion, while its operating temperature range of up to 140°F makes it suitable for use in a range of environments.
Top product features:
- Adjustment Type Screw
- Valve Body Size 3/8 in
- Metering Direction Meter Out
Top product applications:
- Industrial Automation: This speed control valve is used to regulate airflow and pressure in industrial automation systems, such as pneumatic systems for manufacturing and assembly lines.
- Pneumatic Tool Control: The valve can be used to control the speed of pneumatic tools, such as air motors and pneumatic cylinders, by regulating the airflow and pressure.
- Medical Equipment: In medical settings, this valve can be used to control the flow of compressed air or gas to medical devices, such as ventilators or oxygen therapy equipment.
Speed Control Valve, Adjustment Type Screw, Valve Body Size 3/8 in, Air Connection Size 8 mm, Connection Type BSPT, Connection Size 3/8 in, Air Connection Type Push to Connect Tube, Metering Direction Meter Out, Body Material Brass/PBT, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 14.5 psi, Maximum Flow Rate 30 cfm, Minimum Flow Rate Not Applicable, Fitting Style Elbow, Body Material Finish Nickel Plated, Maximum Operating Temperature 140 Degrees F
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 1.00
- Package Weight: 0.12
Product info last updated on March 30, 2026 10:36am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
