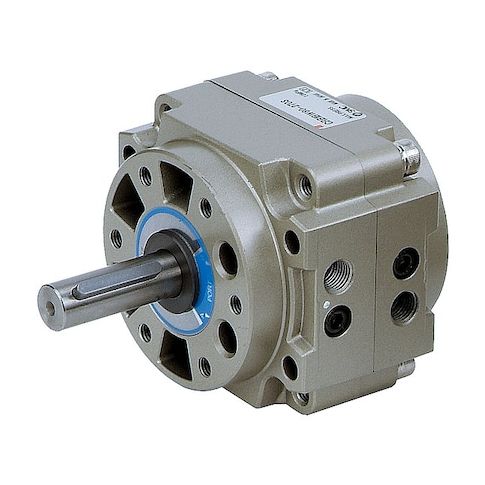

Rotary Actuator, 90 Deg, 100mm Bore MPN:CDRB1BW100-90S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1649444
Rotary Actuator, 90 Deg, 100mm Bore
The SMC Rotary Actuator is a robust and reliable solution for various applications requiring precise 90-degree rotation. With a maximum output torque of 150 N-m, it can efficiently drive mechanisms in demanding environments. Suitable for use with compressed air, this actuator is ideal for industries such as robotics, material handling, and packaging. Its compact design and magnetic piston ensure smooth operation and long lifespan. The actuator's versatility and reliability make it an excellent choice for a wide range of applications, from simple to complex systems, where precise rotation is crucial.
Top product features:
- Rotary motion is provided by a single vane actuator design
- Maximum output torque of 150 N-m is achievable
- Rotation angle is fixed at 90 degrees
Top product applications:
- Automotive applications such as windshield wiper motors
- Medical equipment such as surgical instrument positioning
- Industrial automation such as robotic arm movement
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 150 N-m, Rotation Angle 90 Degrees , Bore Diameter 100 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 25 mm, Shaft Length 65 mm, Inlet Size 1/8 in, Air Inlet Type BSPT, Cushion Type Rubber Cushion, Magnetic Piston Magnetic Piston, Weight 4.15 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant, For Fluid Type Air
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.25
- Package Width: 6.25
- Package Height: 6.00
- Package Weight: 9.64
Product info last updated on February 27, 2026 8:40am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
