Rotary Actuator, 270 Deg, 80mm Bore MPN:CRB1BW80-270S
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1279835

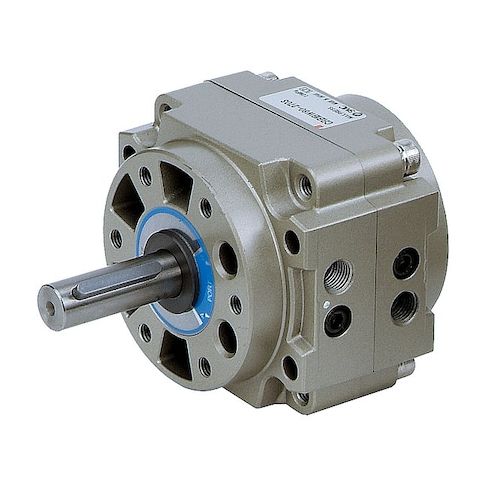

Rotary Actuator, 270 Deg, 80mm Bore
The SMC Rotary Actuator is a powerful and versatile component ideal for a wide range of applications. With a maximum output torque of 37.6 N-m and a 270-degree rotation angle, it's perfect for use in industrial automation, robotics, and medical devices. Its compact design and high-pressure capabilities make it an excellent choice for applications where space is limited. The actuator's reliability and durability ensure smooth and precise operation, even in harsh environments. Suitable for use in applications such as packaging machinery, material handling systems, and medical equipment, the SMC Rotary Actuator is a reliable and efficient solution.
Top product features:
- Rotary motion is provided through a 270-degree rotation angle.
- Maximum output torque of 37.6 N-m is achieved through the actuator's design.
- A rubber cushion is used to provide a soft stop at the end of the rotation.
Top product applications:
- Positioning and control of robotic grippers
- Actuation of valves in industrial processes
- Control of precision machinery in manufacturing
Rotary Actuator, Actuator Style Single Vane, Maximum Output Torque 37.6 N-m, Rotation Angle 270 Degrees , Bore Diameter 80 mm, Maximum Operating Pressure 145 psi, Shaft Diameter 16.9 mm, Shaft Length 23.5 mm, Inlet Size 1/8 in, Air Inlet Type BSPT, Cushion Type Rubber Cushion, Magnetic Piston Non-Magnetic Piston, Weight 1.95 kg, Maximum Operating Temperature 140 Degrees F, Minimum Operating Pressure 21.76 psi, Minimum Operating Temperature 41 Degrees F, Standards RoHS Compliant
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 4.00
- Package Height: 5.00
- Package Weight: 4.52
Product info last updated on February 11, 2026 11:57pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
