Bearing, Bore 45mm, Industry 2209-EKTN9/C3 MPN:2209 EKTN9/C3
Bearing, Bore 45mm, Industry 2209-EKTN9/C3

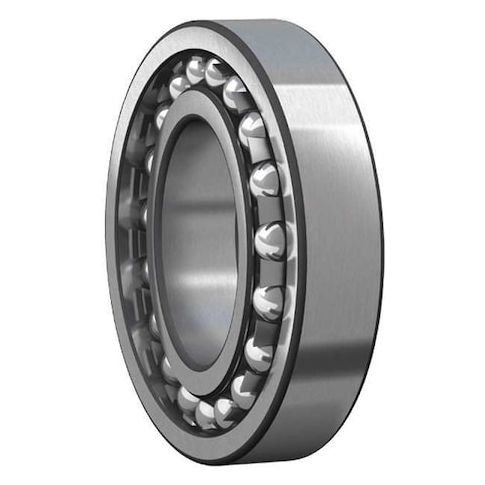

The SKF 2209-EKTN9/C3 self-aligning ball bearing is a versatile and reliable solution for a wide range of applications. Its 45mm bore diameter and 85mm outside diameter make it ideal for use in machinery, equipment, and automotive systems where precise alignment and smooth operation are crucial. With a dynamic radial load capacity of 32.5 kN, this bearing can withstand heavy loads and maintain its performance over time. Suitable for use in industrial settings, the 2209-EKTN9/C3 bearing is a cost-effective and efficient choice for applications requiring high accuracy and durability.
Top product features:
- Self-aligning capability allows the bearing to maintain proper alignment and rotation even when subjected to external forces or misalignment.
- Tapered bore with a 1:12 taper enables easy installation and prevents damage to the shaft.
- ABEC 1 rating ensures high precision and smooth operation, reducing vibration and noise.
Top product applications:
- High-speed machinery
- Robotics and automation
- Conveyors and material handling systems
Self-Aligning Ball Bearing, Bearing Industry Number 2209, Bore Diameter 45 mm, Outside Diameter 85 mm, Outer Ring Width 23 mm, Ring Material Alloy Steel, Bore Type Tapered 1:12, Closure Open, Cage Material Thermoplastic, System of Measurement Metric, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade 100Cr6, Bore Diameter Tolerance +0/-0.012 mm, Dynamic Radial Load Capacity 32.5 kN, Fillet Radius 1 mm, Lubricant Material Alvania Grease, Maximum Axial Load 698 lbf
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 1.00
- Package Weight: 1.21
Product info last updated on February 15, 2026 5:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
