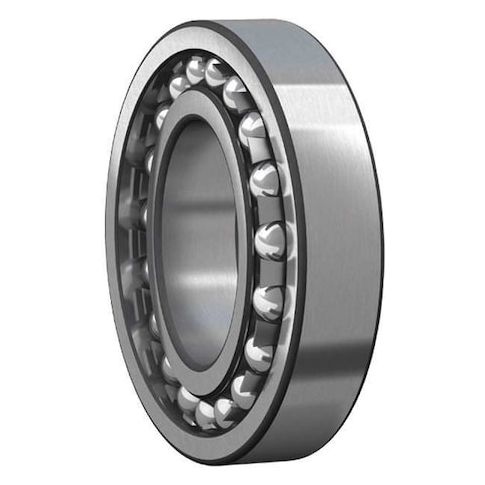

Self-Aligning Radial Ball Bearing, 1316 Industry Number, Open Closure, 80 mm Bore Dia, Alloy Steel MPN:1316/C3
Self-Aligning Radial Ball Bearing, 1316 Industry Number, Open Closure, 80 mm Bore Dia, Alloy Steel
The SKF 1316/C3 self-aligning ball bearing is a high-performance solution for applications requiring precise movement and reliability. With a 80mm bore diameter and 170mm outside diameter, this bearing is ideal for heavy-duty machinery, industrial equipment, and high-speed operations. Its alloy steel construction and Alvania grease lubrication ensure extended lifespan and optimal performance. Suitable for applications such as gearboxes, pumps, and conveyor systems, this bearing offers dynamic radial load capacity of 88.4 kN and maximum axial load of 2,104 lbf, making it a reliable choice for demanding industrial settings.
Top product features:
- Self-aligning capability allows the bearing to compensate for minor misalignments in the shaft or housing, reducing the risk of premature wear and increasing bearing lifespan.
- Balls are made of 100Cr6 alloy steel, providing high hardness and resistance to wear and corrosion, ensuring a long and reliable service life.
- A 2mm fillet radius provides a smooth transition between the ball and the inner ring, reducing stress concentrations and allowing for smoother rotation and quieter operation.
Top product applications:
- High-speed wind turbines
- Industrial machinery
- Heavy-duty conveyor systems
Self-Aligning Ball Bearing, Bearing Industry Number 1316, Bore Diameter 80 mm, Outside Diameter 170 mm, Outer Ring Width 39 mm, Ring Material Alloy Steel, Bore Type Cylindrical, Closure Open, Cage Material Steel, System of Measurement Metric, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade 100Cr6, Bore Diameter Tolerance +0/-0.015 mm, Dynamic Radial Load Capacity 88.4 kN, Fillet Radius 2 mm, Lubricant Material Alvania Grease, Maximum Axial Load 2,104 lbf
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.00
- Package Height: 1.75
- Package Weight: 9.28
Product info last updated on February 10, 2026 6:36am UTC
Category: Bearings, V-belts and Power Transmission Equipment
