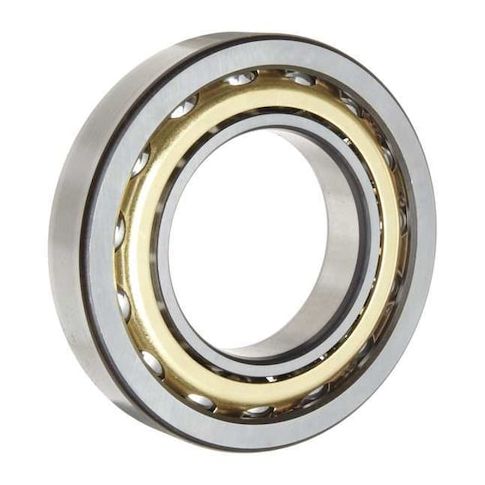

Angular Contact Bearing, 70mm, O.D. 150mm MPN:7314 BECBM
Angular Contact Bearing, 70mm, O.D. 150mm
The SKF 7314 Angular Contact Bearing is a high-performance solution for demanding applications. Its 40-degree contact angle and duplex design provide superior load-carrying capacity and precision, making it ideal for use in industrial equipment, gearboxes, and high-speed machinery. With a maximum speed of 5,600 RPM and operating temperatures ranging from -40°C to 100°C, this bearing is suitable for a wide range of applications, including aerospace, automotive, and heavy industry. Its brass cage and alloy steel construction ensure durability and longevity, while the MT47 grease provides reliable lubrication.
Top product features:
- Angular Contact Bearing design allows for high precision and smooth operation in applications with high radial and axial loads.
- Cage Material Brass provides a durable and corrosion-resistant component that supports the bearing's rolling elements.
- 40 Degree Contact Angle enables the bearing to support both radial and thrust loads, making it suitable for applications with high axial forces.
Top product applications:
- Machine Tool Spindles
- Robot Arms
- Gearboxes
Angular Contact Ball Bearing, Bearing Industry Number 7314, Bore Diameter 70 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Lubricant Material MT47 Grease, Matched Bearing Type Duplex, Maximum Speed 5,600 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -40 Degrees C, Number of Rows One, Outside Diameter 150 mm, Overall Width 35 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.75
- Package Height: 1.50
- Package Weight: 6.20
Product info last updated on February 5, 2026 4:28am UTC
Category: Bearings, V-belts and Power Transmission Equipment
