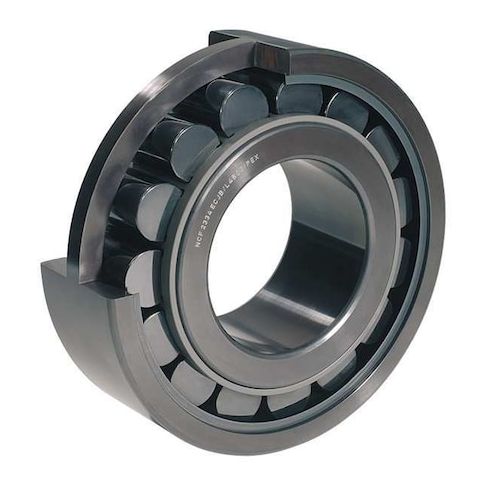

Cylindrical Roller Bearing, Bore 80mm MPN:NU 216 ECP/C3
Cylindrical Roller Bearing, Bore 80mm
The SKF Cylindrical Roller Bearing is a high-performance bearing designed for demanding applications. With a bore diameter of 80mm and a maximum speed of 5,600 RPM, it is ideal for use in high-speed machinery and equipment. The bearing's open design allows for easy lubrication and maintenance, while its alloy steel and steel roller materials provide exceptional strength and durability. Suitable for use in temperatures ranging from -40 to 205°F, this bearing is perfect for applications in the aerospace, automotive, and industrial sectors, including gearboxes, pumps, and conveyor systems. Its compact design and high-speed capabilities make it a reliable choice for heavy-duty operations.
Top product features:
- Cylindrical design allows for high radial loads and smooth rotation
- Thermoplastic cage material provides high strength and resistance to wear
- Steel rollers provide high load-carrying capacity and durability
Top product applications:
- Heavy machinery such as cranes and hoists
- Industrial gearboxes and gearmotors
- Conveyor systems and roller tables
Cylindrical Roller Bearing, Bearing Industry Number 216, Bore Diameter 80 mm, Bore Type Cylindrical, Cage Material Thermoplastic, Closure Open, Inner Ring Outside Diameter 121.691 mm, Maximum Speed 5,600 RPM, Maximum Temperature 205 Degrees F, Minimum Temperature -40 Degrees F, Number of Rows One, Outer Ring Inside Diameter 122 mm, Outside Diameter 140 mm, Overall Width 26 mm, Ring Material Alloy Steel, Roller Material Steel, Seal Type Not Applicable, Split Bearing Yes
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.75
- Package Width: 5.75
- Package Height: 1.25
- Package Weight: 3.47
Product info last updated on March 26, 2026 7:35pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
