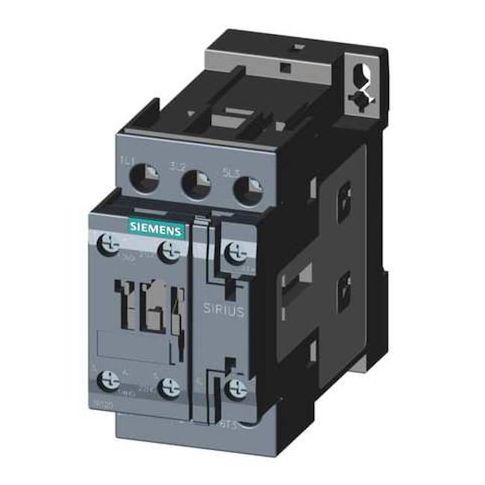

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Screw MPN:3RT20271BG40

• The SIRIUS IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified IEC standards and suitable for controlling motors and industrial loads within specified parameters.

  - Coil voltage: 125 V DC

• - Action: Non-Reversing
• Poles: 3
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Frame: Frame B
• - Enclosure: does not include an enclosure
• compatible with enclosures as per installation requirements
• - Electrical connection: Screws
• - Phase: 3
• - Standards: CCC, CE, CSA, UL
• - Dimensions: Height 1.77 in
• Width 1.77 in
• Depth 3.82 in
• - Max operating watts: rated for operation up to 15 kW at 400V AC-3
• up to 28 kW at 400V AC-1 under specified conditions
• - Full load amps: rated for full load currents of inductive loads up to 32 A and resistive loads up to 50 A within specified ratings
• - Horsepower ratings:
  • - 2 hp (1P/120V)
  • 5 hp (1P/230V)
  • 10 hp (3P/208V)
  • 10 hp (3P/240V)
  • 20 hp (3P/480V)
  • 25 hp (3P/575V)
