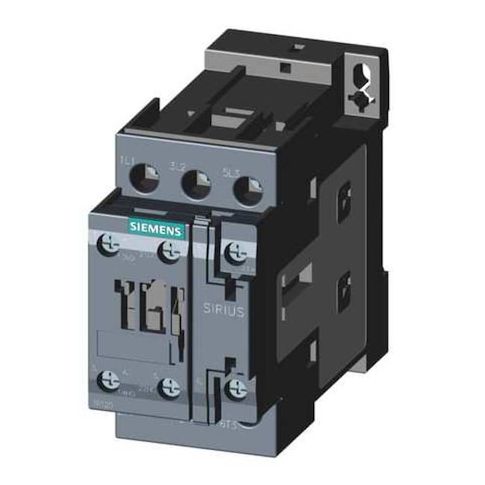

IEC Magnetic Contactor, 1NC/1NO, 220V DC, 3 P, Non-Reversing, Screw MPN:3RT20271BM40

• The SIRIUS IEC Magnetic Contactor is a 3-pole, non-reversing IEC magnetic contactor (Frame B) with a 220 V DC coil. It has two auxiliary contacts configured as 1NO/1NC and utilizes screw terminal connections. It is intended for installation in control panels with appropriate enclosures

• rated for operation within specified parameters.

  Key features:

  • - Coil voltage: 220 V DC
  • - Poles/Phase: 3 poles, 3 phase
  • - Action: Non-Reversing
  • Reversing: Not applicable
  • - Auxiliary contacts: 2 total (1NO/1NC)
  • - Frame: Frame B
  • - Enclosure: No Enclosure
  • - Electrical connection: Screws
  • - Dimensions: Depth 3.82 in
  • Height 1.77 in
  • Width 1.77 in
  • - Max operating watts: 15 kW (400 V AC-3)
  • 28 kW (400 V AC-1)
  • - Full load current: Inductive 32 A
  • Resistive 50 A
  • - HP ratings (selected voltages): 2 hp @ 120 V
  • 5 hp @ 230 V
  • 10 hp @ 208 V
  • 10 hp @ 240 V
  • 20 hp @ 480 V
  • 25 hp @ 575 V
  • - Standards: CCC, CE, CSA, UL
  • - Terminal connection: Screws
