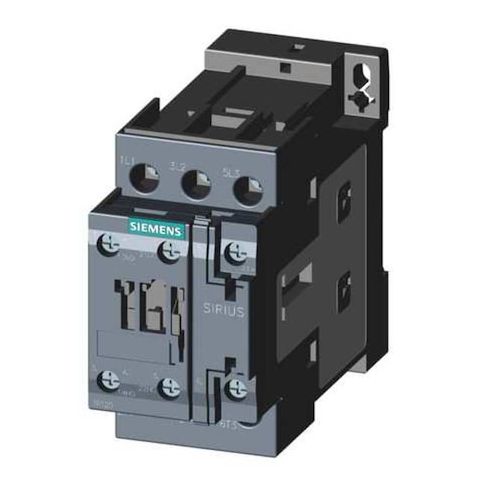

IEC Magnetic Contactor, 1NC/1NO, 110V DC, 3 P, Non-Reversing, Screw MPN:3RT20271BF40
Free Shipping
In Stock
The SIRIUS IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Suitable for installation in suitable enclosures or environments, this 3-pole, non-reversing contactor is rated for operation within specified electrical parameters. It features a 110V DC coil voltage, screw terminal connections, and a frame B design. With a maximum operating wattage of 28 kW and a full load current of 50A resistive, this contactor is ideal for use in industrial settings, such as machinery control, motor control, and power distribution systems, providing reliable and efficient control over electrical circuits.
Top product features:
- IEC Magnetic Contactor operates as a 3-pole, non-reversing electrically operated switch.
- The product is equipped with auxiliary contacts of the specified configuration.
- The contactor is rated for operation within specified electrical parameters for both inductive and resistive loads.
Top product applications:
- Industrial Automation
- This IEC Magnetic Contactor is suitable for use in industrial automation systems, particularly in applications where high reliability and efficiency are required.
- Motor Control
The SIRIUS IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within specified electrical parameters.
- Action: Non-Reversing (factual description, acceptable)
- - Poles: 3
- - Coil Voltage: 110 V DC
- - Auxiliary Contacts: equipped with auxiliary contacts of the specified configuration
- - Electrical Connection: Screws
- - Enclosure: Does not include an enclosure
- suitable for installation in appropriate enclosures or environments
- - Frame: Frame B
- - Phase: 3
- - Full Load Amps: Inductive 32 A
- Resistive 50 A
- - Full Load Current: Inductive 32 A
- Resistive 50 A
- - Horsepower (various voltages/phases): 2 hp @ 120V 1P
- 5 hp @ 230V 1P
- 10 hp @ 208V 3P
- 10 hp @ 240V 3P
- 20 hp @ 480V 3P
- 25 hp @ 575V 3P
- - Max Operating Watts: 15 kW (400V, AC-3)
- 28 kW (400V, AC-1)
- - Dimensions: Height 1.77 in
- Width 1.77 in
- Depth 3.82 in
- - Standards: CCC, CE, CSA, UL
- - Terminal Connection: Screw
- - Reversing Capability: Non-Reversing (factual description, acceptable)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.60
- Package Height: 2.10
- Package Weight: 1.30
