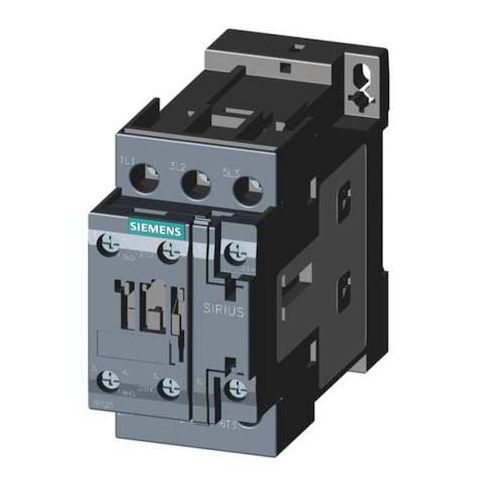

IEC Magnetic Contactor, 1NC/1NO, 48V DC, 3 P, Non-Reversing, Screw MPN:3RT20271BW40

• The SIRIUS IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch used to control power circuits. It is driven by a 48 V DC coil and includes auxiliary contacts with a 1NO/1NC configuration (1NC/1NO form). The device uses screw terminals, has no enclosure, and is categorized as Frame B.

  - The device is rated for non-reversing operation within specified parameters.

• - Poles: 3
• - Phase: 3
• - Coil Voltage: 48 V DC
• - Auxiliary Contacts: 2 (1NO/1NC)
• - Auxiliary Contact Form: 1NC/1NO
• - Electrical Connection: Screws
• - The device does not include an enclosure.
• - Frame: Frame B
• - Full Load Amps — Inductive/Resistive: 32 A / 50 A
• - Full Load Current — Inductive/Resistive: 32 A / 50 A
• - HP @ 1 Phase: 120V = 2 hp
• 230V = 5 hp
• - HP @ 3 Phase: 208V = 10 hp
• 240V = 10 hp
• 480V = 20 hp
• 575V = 25 hp
• - Power ratings are based on standard testing conditions and do not imply suitability for all applications.
• - Standards: CCC, CE, CSA, UL
• - Height: 1.77 in
• - Width: 1.77 in
• - Depth: 3.82 in
• - Reversing Capability: Non-Reversing
• - Item: IEC Magnetic Contactor
