Digital Panel Meter, Temperature MPN:F45-1-80-0-F
Digital Panel Meter, Temperature

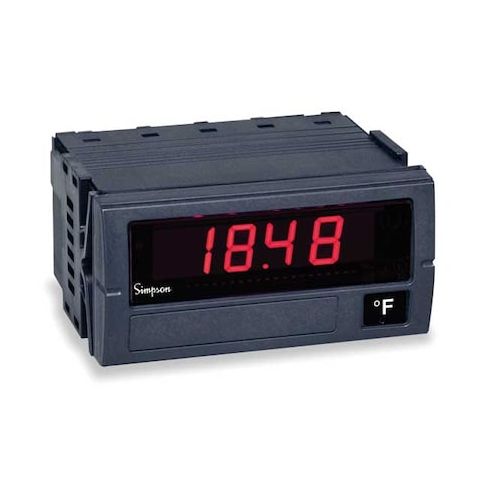

The Simpson Digital Panel Meter is a reliable and accurate temperature measurement solution for various applications. This compact instrument features a 4-1/2 digit red LED display, spanning from -328 to 2192 degrees F, making it suitable for use in industrial, laboratory, and commercial settings. With its True RMS measurement capability and no excitation required, it provides precise readings without the need for additional power sources. The meter's standard 1/8 DIN cutout and screw terminal connection make it easy to integrate into existing systems. Ideal for monitoring temperatures in HVAC, manufacturing, and research environments.
Top product features:
- Temperature measurement with an input range of Type J T/C
- Display of temperature readings with an accuracy of +/0.5 percent of reading
- True RMS measurement capability
Top product applications:
- Industrial temperature monitoring
- Temperature measurement in laboratories
- High-temperature process control
Digital Panel Meter, Temperature, Input Range Type J T/C, Accuracy +/-0.5 Percent of Reading +/- 35 Count, Display Span -328 Degrees to 2192 Degrees F, Display Digits 4-1/2, Red LED Display, - Relays, True RMS -, No Excitation, Use With -, Fits Standard 1/8 DIN Cutout, Connector Type Screw Terminal, Process Connection -, Power Required 120V AC, Not Applicable Interface, Output -, - NEMA Rating, Depth 2.94 in, Mounting Clip, Style Falcon, Includes Instructions, Manufacturers Warranty Length 2 yr
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 4.60
- Package Height: 2.50
- Package Weight: 0.75
Product info last updated on February 1, 2026 1:51am UTC
Category: Process Monitoring
