Push Button Exit Trim, Key Override, Left MPN:5010-XS-WL-26D-41
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0491531

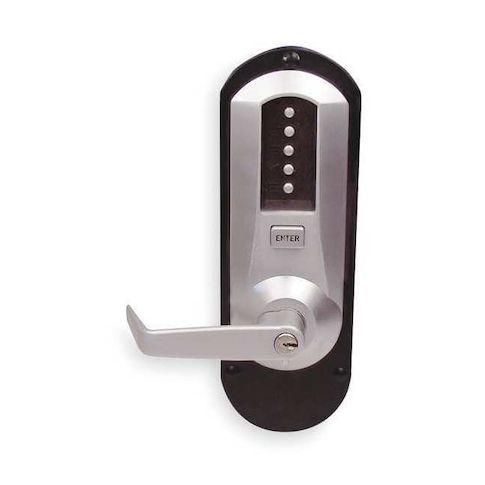

Push Button Exit Trim, Key Override, Left
The Simplex Push Button Exit Trim is a versatile and secure locking solution ideal for high-traffic areas such as offices, schools, and hospitals. This Grade 1 mechanical lockset provides easy access with a push-button exit and key override option, allowing users to quickly exit while still maintaining security. Its vandal-resistant design and 3-hour fire rating make it a reliable choice for public spaces. The lock's 5-button keypad allows for up to 1 user code, making it perfect for small facilities or areas with limited access. Its ADA compliance and wide range of applications make it a great addition to any building.
Top product features:
- Push Button Exit Trim allows for easy exit from the locked area.
- Key Override enables authorized personnel to bypass the lock without a key.
- 5 Button Keypad provides a secure and convenient way to enter user codes.
Top product applications:
- Office Buildings
- High-Rise Apartment Complexes
- Government Facilities
Mechanical Push Button Lockset, Handle Type Winston Lever, Function Entry with Key Override, Key Override Options KABA Cylinder (Schlage In.C In. Keyway), Hand Factory Left, Field Reversible, Finish Satin Chrome, Door Thickness 1-1/4 in a 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2 3/8 in, 2 3/4 in, Grade 1, ADA Compliant Yes, 3 hr Fire Rated, Case Material Zinc, Series 5000, Max. User Codes 1, Standards ANSI/BHMA Grade 1 (A156.2, 156.13), D.O.D. Compliant 5220.22M, UL/ULC Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 10.40
- Package Height: 5.00
- Package Weight: 8.25
Product info last updated on January 31, 2026 8:20am UTC
Category: Door Hardware and Components
