1-1/2" NPT Bronze Spring Check Valve MPN:505SB
Free Shipping
In Stock
The Simmons 1-1/2in NPT Bronze Spring Check Valve is a reliable and efficient solution for various industrial applications. Ideal for general-purpose use, this inline spring check valve features a bronze body and stainless steel spring for durability and resistance to corrosion. With a cracking pressure of 1 psi and maximum water pressure of 400 psi, it can handle a range of fluid flows. Suitable for horizontal or vertical mounting, this valve is perfect for use in water treatment, HVAC, and other industrial systems where a reliable check valve is required. Its compact design and easy installation make it a great choice for many applications.
Top product features:
- 1.5in NPT connection allows for secure and reliable connection to pipes and tubes.
- Spring-loaded mechanism provides automatic shut-off in case of backflow or reverse pressure.
- Buna-N seal ensures reliable sealing and prevents leaks in a wide range of temperatures.
Top product applications:
- General Purpose
- General purpose applications such as water treatment and municipal water supply
- Industrial applications such as oil and gas production

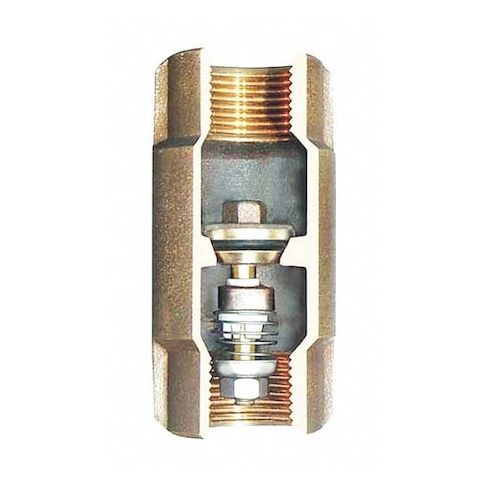

The SIMMONS 505SB check valve is an inline spring check valve for general-purpose water service. It uses a poppet check mechanism intended for one-direction flow and reverse-flow checking, with a 1 psi cracking pressure. This 1-1/2 in. valve has FNPT x FNPT connections and mounting orientations of horizontal or vertical.
Key Features:
- Body material: silicon bronze with bronze valve body construction.
- Check mechanism: poppet design with a 304 stainless steel mechanism and 302 stainless steel spring.
- Connections: 1-1/2 in. FNPT x FNPT with female NPT threads on both sides.
- Seal and seat materials: Buna-N seal and bronze seat.
- Pressure and temperature ratings: 400 psi maximum water pressure, 400 psi maximum pressure, and 190 degrees F maximum operating temperature.
- Flow design: single inline spring body style.
- Mounting orientations: horizontal or vertical.
- Certifications/standards: multiple NSF, ANSI, and California Proposition standards/certifications as specified by the supplier.
- Dimensions: 4.13 in. overall length, 4-1/8 in. overall height, 2-5/8 in. hex size, 1-1/2 in. cap to inlet center, and 1-1/2 in. height from cap to inlet center.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 2.80
- Package Height: 2.80
- Package Weight: 2.07
