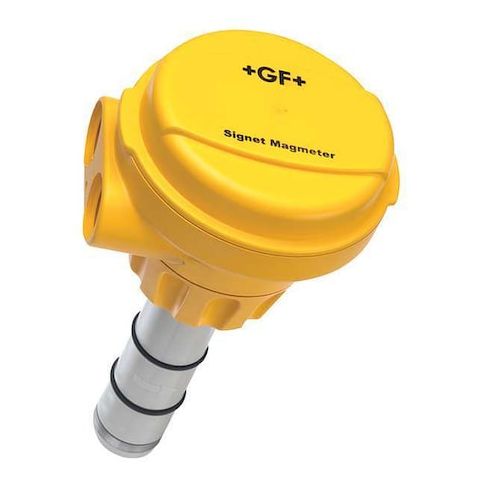

Insertion Magmeter MPN:3-2551-P0-11
Insertion Magmeter
The Insertion Magmeter from Signet is a reliable and accurate flow sensor ideal for use in industrial applications where high temperatures and viscosities are present. Its polypropylene housing and Viton seal ensure durability and resistance to corrosion, while its ability to measure flow rates up to 1,309 gpm makes it suitable for a wide range of applications, including chemical processing, pulp and paper, and wastewater treatment. With CE certification and UL listing, this magmeter provides a high level of safety and performance, making it an excellent choice for industries requiring precise flow measurement.
Top product features:
- Insertion design allows for easy installation into pipes without process disruption
- Measures flow rates up to 1,309 gpm
- Produces a standard frequency pulse output
Top product applications:
- Chemical Processing
- Wastewater Treatment Plants
- Pulp and Paper Mills
Magmeter Flow Sensor, Product Type Magmeter Flow Sensor, Connection Type Insertion, Media Temperature - Maximum 185 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum 24V DC, Housing Material Polypropylene, Seal Material Viton, Shaft Material No Shaft, Wetted Material Ethylene Propylene, Viton, PBT, Polyamide, PVDF, Standards CE Certified, cUL Listed, RoHS, UL Listed, Output Type Standard Frequency Pulse, Flow Rate - Maximum 1,309 gpm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 7.40
- Package Height: 5.10
- Package Weight: 1.60
Product info last updated on January 30, 2026 11:04pm UTC
Category: Pump Controls
