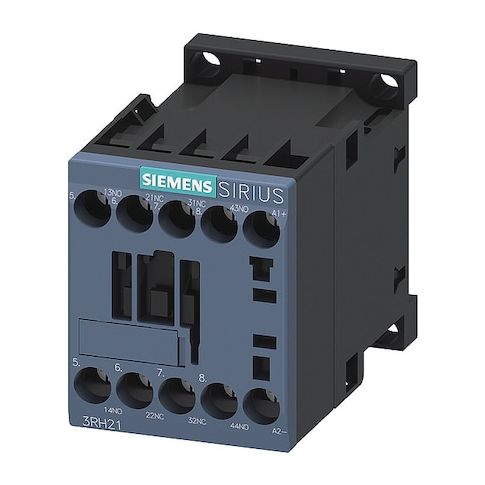

IEC Control Relay, 2NO/2NC, 24V DC, 10 A MPN:3RH21221KB40
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8361027
IEC Control Relay, 2NO/2NC, 24V DC, 10 A
The Siemens IEC Control Relay is a versatile and reliable solution for various industrial applications. Suitable for use in control circuits, it offers 2NO/2NC contacts and a high current rating of 10A. The relay is compatible with Siemens Series 3RH21 control relays and can be mounted on DIN rail or surface. Its compact design and low power consumption of 2.8W make it an efficient choice. Ideal for use in temperature control, lighting systems, and machine automation, this relay ensures precise and reliable switching in a wide range of applications, from 24V DC to AC voltages up to 690V.
Top product features:
- 2NO/2NC contact configuration allows for both normally open and normally closed connections to be made
- 10 A current rating enables the relay to handle high power requirements
- 24V DC coil voltage allows for operation with a single power source
Top product applications:
- Industrial Automation Systems
- Machine Control Panels
- Power Distribution Systems
IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 24V DC, Contact Rating (AC) 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail and Surface, Power Consumption 2.8 W, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH21 Control Relays, Maximum Operating Temperature 140 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.42
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.65
Product info last updated on February 9, 2026 9:36am UTC
Category: Industrial Electrical Controls and Automation
