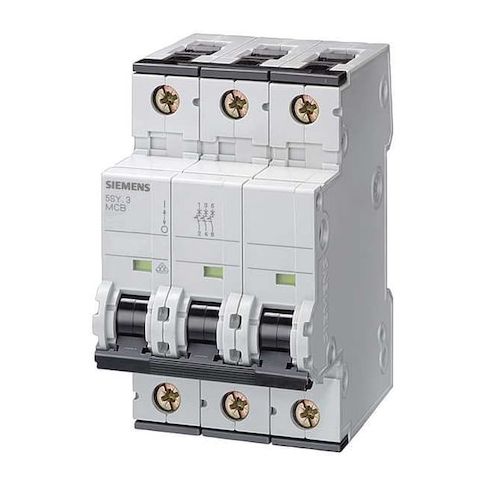

Circuit Breaker, 5SY6 Series, 13A, 3 Pole, 400V AC, 5kA at 400V AC, C Curve
Protect your industrial equipment with the Siemens 5SY6 Series 3 Pole Circuit Breaker. This reliable device provides 13A of current protection and 5kA of maximum short-circuit current at 400V AC, meeting UL Type UL 1077 standards. Suitable for industrial applications, it features a C Curve tripping mechanism and thermal magnetic trip type, ensuring safe and efficient operation. With a compact design and DIN rail mounting style, it's easy to integrate into your existing system. The 5SY6 Series Circuit Breaker is ideal for use in control panels, distribution boards, and other industrial settings where high reliability and safety are paramount.
Top product features:
- Protects against electrical overloads with a maximum current rating of 13A
- Trips on both thermal and magnetic faults for enhanced safety
- Mounts on a DIN rail for easy installation and space-saving design
Top product applications:
- Industrial
- Circuit Breaker Actuator Toggle
- DIN Rail Mounting Style
IEC Supplementary Protector, Amps 13 A, AC Voltage Rating 400V AC, Max. AIR Rating 5kA at 400V AC, Series 5SY6, Curve Type C, DC Voltage Rating Not Rated, Number of Poles 3, Phase 3, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.7 in, Width 2.28 in, Depth 3.3 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 2.20
- Package Weight: 1.05
Product info last updated on March 30, 2026 7:36pm UTC
Category: Circuit Protection
