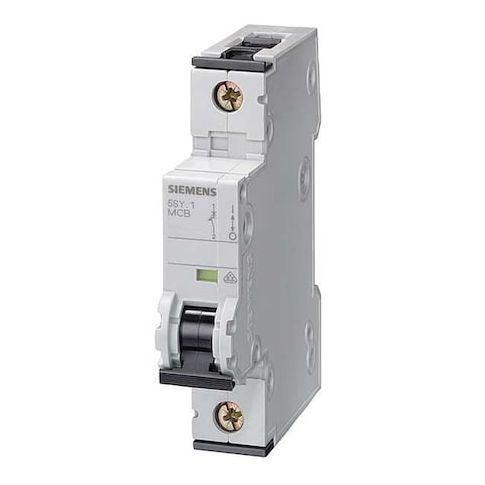

Circuit Breaker, 5SY6 Series, 16A, 1 Pole, 230/400V AC, 5kA at 230/400V AC, C Curve MPN:5SY61167
Circuit Breaker, 5SY6 Series, 16A, 1 Pole, 230/400V AC, 5kA at 230/400V AC, C Curve
Protect your industrial equipment with the reliable Siemens 5SY6 Series Circuit Breaker. Designed for use in harsh environments, this 16A, 1-pole unit offers 5kA at 230/400V AC and meets UL Type UL 1077 standards. The C Curve provides fast tripping in the event of an overload, ensuring minimal downtime and equipment damage. Suitable for applications in industrial settings, this circuit breaker is ideal for use in control panels, machinery, and other high-voltage systems. Its compact design and DIN rail mounting make it easy to integrate into existing infrastructure, providing a reliable and efficient solution for industrial power distribution.
Top product features:
- Protects against overcurrent conditions with a maximum current rating of 16A
- Interrupts power in the event of a fault, with a maximum short-circuit current rating of 5kA at 230/400V AC
- Provides thermal magnetic tripping, allowing for protection against both thermal and magnetic faults
Top product applications:
- Industrial
- Circuit Breaker
- Electrical Distribution
IEC Supplementary Protector, Amps 16 A, AC Voltage Rating 230/400V AC, Max. AIR Rating 5kA at 230/400V AC, Series 5SY6, Curve Type C, DC Voltage Rating Not Rated, Number of Poles 1, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.53 in, Width 0.69 in, Depth 3.01 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.70
- Package Height: 0.70
- Package Weight: 0.05
Product info last updated on February 7, 2026 7:23am UTC
Category: Circuit Protection
