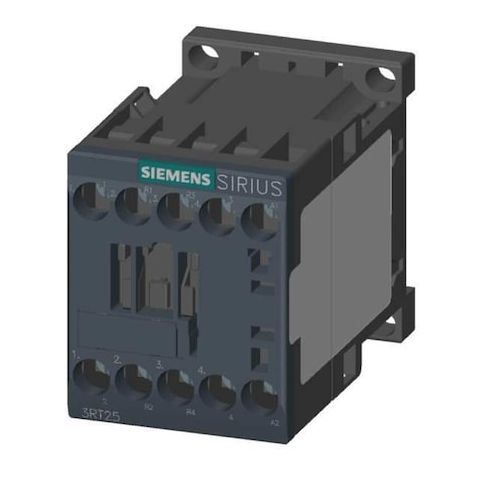

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT25161AB00

• Siemens IEC Magnetic Contactor is a four-pole, non-reversing, coil-driven switching device rated for operation within specified parameters. This model features a 24 V AC coil

• auxiliary contacts: None
• series: SIRIUS 3RT25
• frame size: S00. Mounting options: DIN Rail or Surface
• wiring connection: Screws.

  Key features

• - Coil voltage: 24 V AC
• - Action: Non-Reversing
• - Poles / main contacts: 4 poles
• 2NC/2NO configuration
• - Auxiliary contacts: None
• - Frame / series: S00 frame, SIRIUS 3RT25
• - Mounting style: DIN Rail, Surface
• - Electrical connection: Screws
• - Enclosure: None
• IP rating: IP20
• - Phase / frequency: 3-phase
• 50/60 Hz
• - Dimensions (W x H x D): 1.97 in x 3.08 in x 2.45 in
• - Full load amps: Inductive 9 A
• Resistive 16 A
• - Operating temperature: -13°F to 140°F
• - Includes: S00 Frame
