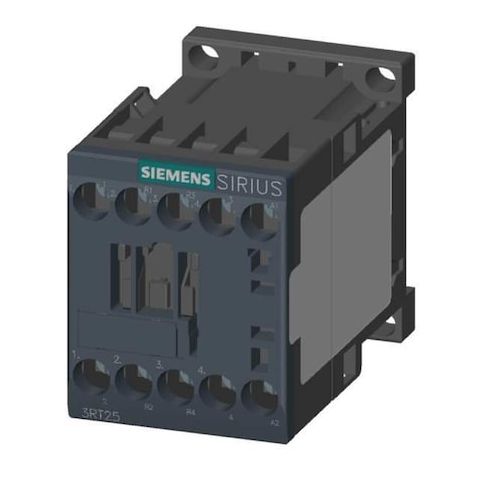

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT25171AB00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Suitable for use in industrial settings, this non-reversing contactor features a 4-pole design with two Normally Closed and two Normally Open main contacts, providing a robust switching solution. With a maximum operating temperature of 140°F and a minimum operating temperature of -13°F, this contactor can withstand harsh environments. Ideal for use in HVAC, conveyor systems, and other industrial applications, the Siemens IEC Magnetic Contactor offers reliable and efficient control, reducing downtime and increasing overall system performance.
Top product features:
- Non-reversing operation allows for predictable and reliable control of electrical circuits.
- Two Normally Closed (2NC) and two Normally Open (2NO) main contacts enable versatile control and switching capabilities.
- Maximum operating temperatures of 140 Degrees F and minimum operating temperatures of -13 Degrees F ensure reliable operation in a wide range of environments.
Top product applications:
- Motor control for industrial applications
- Control of pumps and fans in HVAC systems
- Power distribution in commercial and industrial facilities
The SIEMENS - IEC Magnetic Contactor is a non-reversing, 4-pole device with no auxiliary contacts. It operates on a coil voltage of 24V AC and has an electrical connection via screws. The contactor belongs to the SIRIUS 3RT25 series and comes in an S00 frame size. This product does not include an enclosure, hence it does not have a NEMA rating. With its DIN rail or surface mounting style, this contactor can be installed vertically.
Key features of this product include:
- - A maximum operating temperature of 140 Degrees F and minimum operating temperature of -13 Degrees F.
- - Mechanical Operating Durability: 30000000
- - Main Contact Configuration: Two Normally Closed (2NC) and two Normally Open (2NO) main contacts.
- - Horsepower ratings vary depending on phase and voltage
- for instance, at single phase -120V AC it's rated at 1/3 hp while at three-phase -480V AC it's rated at 5 hp.
- - Standards compliance with REACH Art 33, WEEE (2012/19/EU).
- - Maximum operating watts are as follows: It is rated for operation at a maximum of 13kW under AC-4 conditions, a maximum of 6kW under AC-3 conditions, and a maximum of 13kW under AC-1 conditions.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.03
- Package Width: 3.66
- Package Height: 5.12
- Package Weight: 1.03
