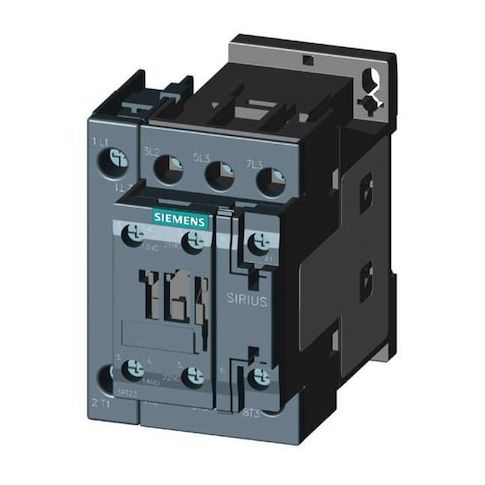

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT23271AC20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in industrial loads. Its 24V AC coil and four-pole configuration make it suitable for a wide range of applications, including motor control and lighting systems. With a non-reversing action and screw terminal connections, this contactor is easy to integrate into existing systems. Its durable design can withstand up to 10 million mechanical cycles and operates within a temperature range of -13°F to 140°F. Perfect for use in industrial settings, this contactor is ideal for applications such as manufacturing, HVAC, and power distribution.
Top product features:
- The IEC Magnetic Contactor has a non-reversing action.
- The IEC Magnetic Contactor uses a 24 V AC coil to open and close its main contacts.
- The IEC Magnetic Contactor has screw terminal connections.
Top product applications:
- Industrial Power Distribution Systems
- Control Panels and Relay Systems
- Motor Control and Drive Systems
The IEC Magnetic Contactor is an electrically operated switching device that uses a 24 V AC coil to open and close its main contacts for controlling power circuits in industrial loads. It is a non-reversing, four-pole device from the SIRIUS 3RT23 family with frame size S0, rated for operation within the specified voltage ranges. It features screw terminal connections and supports DIN Rail or surface mounting. It has an enclosure rating of IP20 and does not include additional enclosure features. It does not include an integrated surge suppression device.
Key features
- - Action: Non-Reversing
- - Reversing: No
- - Coil Voltage: 24 V AC
- - Contactor Style/Series: IEC, SIRIUS 3RT23 (Frame S0)
- - Poles and Contacts: 4 poles
- 4 Normally Open main contacts
- 2 auxiliary contacts (1NO/1NC)
- - Auxiliary Contact Configuration/Form: 1NO/1NC
- - Electrical Connection: Screws
- - Enclosure/NEMA: Has an enclosure rating of IP20
- does not include additional enclosure features
- - Frequency/Phase: 50/60 Hz
- 3-phase
- - Operating Watts: rated for operation at up to 8 kW at 400V within specified parameters
- - Full Load Amps: Inductive 15.5 A
- Resistive 42 A
- - Durability: rated for a maximum of 10,000,000 mechanical cycles under specified testing conditions
- - Temperature Range: -13 °F to 140 °F
- - Dimensions (Overall): Height 5.12 in
- Width 3.04 in
- Depth 3.67 in
- - Mounting: DIN Rail, Surface
- Mount Position: Vertical
- - Includes: S0 Frame
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.03
- Package Width: 3.66
- Package Height: 5.12
- Package Weight: 0.95
