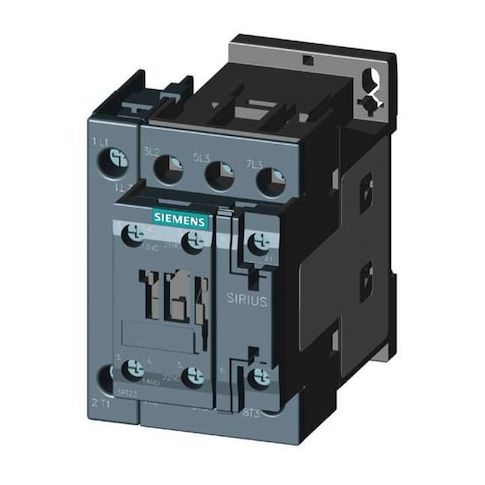

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT23261AC20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switching device designed for various applications in industrial and commercial settings. Suitable for use in three-phase systems, it provides a four-pole switching solution with 1NO/1NC auxiliary contacts and a 24V AC coil. Its non-reversing capability and high mechanical durability make it ideal for applications requiring consistent and reliable operation. With a wide range of power ratings and a compact design, it can be easily integrated into existing systems, making it a versatile solution for industries such as manufacturing, HVAC, and power distribution.
Top product features:
- The Siemens IEC Magnetic Contactor has two auxiliary contacts (1NO/1NC) for added functionality.
- The unit supports screw terminals for easy connection and mounting.
- The Contactor operates within a standard temperature range of -13°F to +140°F (-25°C to +60°C), allowing for reliable performance in various environments.
Top product applications:
- Industrial Automation
- Motor Control Centers
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a four-pole electrical switching device from the SIRIUS 3RT23 series (frame S0). It uses a 24 V AC coil and includes two auxiliary contacts (1NO/1NC). The unit supports screw terminals and can be mounted on a DIN rail or surface-mounted
- it does not include an embedded surge suppressor or enclosure. It operates within standard frequency ranges for three-phase systems at nominal voltages
- refer to product specifications for detailed ratings. Power ratings are specified as up to approximately 8 kW at 400 V under standard conditions
- actual performance may vary based on application parameters. Operating temperature range: -13°F to +140°F (-25°C to +60°C)
- mechanical durability: approximately ten million cycles.
- Coil Voltage: 24 V AC
- - Reversing Capability: Rated as non-reversing
- - Poles / Main Contacts: 4 poles
- 4 normally open main contacts
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Frame/Series: Frame size S0
- Series SIRIUS 3RT23
- - Mounting/Connection: DIN Rail, Surface mounting
- Terminal connection: Screws
- - Enclosure/IP: No enclosure
- rated IP20
- - Frequency/Phase: 50/60 Hz
- Phase: 3
- - Full Load / Current: Inductive 15.5 A
- Resistive 35 A
- - Horsepower/Ratings (selected): Various HP values across 120/230/240 V single-phase and 208/240/480/575 V three-phase
- - Dimensions: Width 2.36 in
- Height 5.12 in
- Depth 3.67 in
- - Includes: S0 Frame
- Auxiliary Contacts Included: Yes
- - Standards: eClass, ETIM, IDEA, REACH Art 33, UNSPSC, WEEE
- - Watts Loss / Max Watts: Typical power dissipation around specified wattage
- maximum power rating of approximately eight kilowatts at designated voltage
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.97
- Package Width: 2.42
- Package Height: 3.05
- Package Weight: 0.51
