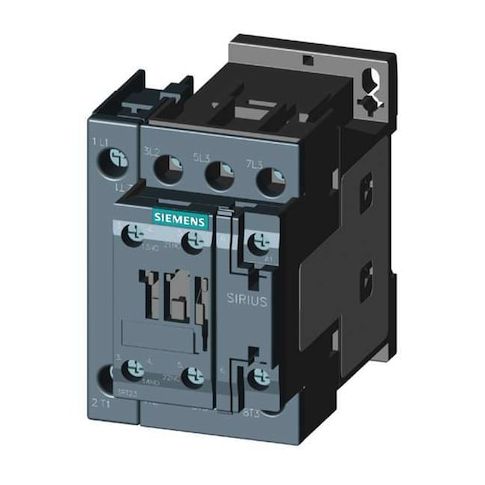

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT23251AC20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of industrial applications. Ideal for use in control circuits, it provides a non-reversing, 4-pole operation with 24V AC coil voltage. The device includes auxiliary contacts for added functionality and is compatible with the SIRIUS 3RT23 series S0 frame. Its compact design and DIN Rail or surface mounting options make it easy to integrate into existing systems. With a high inductive load capacity and IP20 ingress protection rating, this contactor is suitable for use in various industries, including manufacturing, oil and gas, and water treatment.
Top product features:
- Operates within specified IEC standards
- Includes auxiliary contacts (1NO/1NC) for control and monitoring
- Rated for operation up to 8 kW at specified voltage and load conditions
Top product applications:
- Control of fans and pumps in HVAC systems
- Motor control in conveyor belt systems
- Control of lighting systems in commercial and industrial settings
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards.
- It utilizes a coil rated for 24 V AC
- configured as a Non-Reversing, 4-pole device.
- - Coil voltage: 24 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Poles: 4
- - Includes auxiliary contacts (1NO/1NC)
- compatible with the SIRIUS 3RT23 series S0 frame
- - Auxiliary contacts: 2 (1NO/1NC)
- - Auxiliary contact form: 1NC/1NO
- - Frame/Series/Code: S0
- SIRIUS 3RT23
- - Mounting style: DIN Rail, Surface
- - Terminal connection type: Screw
- - Enclosure: No Enclosure
- - IP Rating: conforms to IP20 ingress protection rating
- - Embedded surge suppressor: does not include an embedded surge suppressor
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 15.5 A
- Resistive 30 A
- - Max operating watts: rated for operation up to 8 kW at specified voltage and load conditions
- - Overall dimensions: 5.12 in H x 3.04 in W x 3.67 in D
- - NEMA Enclosure Rating: No Enclosure
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Phase: 3
- - Includes: S0 Frame
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.70
- Package Height: 4.50
- Package Weight: 1.00
