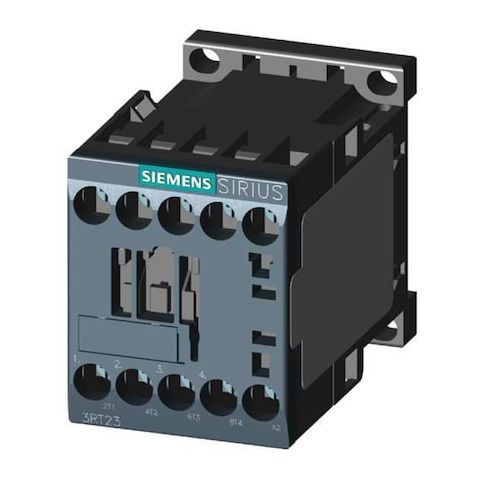

IEC Magnetic Contactor, 4NO, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT23171AB00

• The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing control device with a 24 V AC coil. It uses an electromagnetic coil to open or close its main contacts and is built in the SIRIUS 3RT23 series with an S00 frame size. The unit includes four normally open auxiliary contacts (4NO) and is rated for IEC-style control with screw terminal connections compatible with DIN Rail or surface mounting.

  Key features

• - Action: Non-Reversing
• - Poles: 4
• - Main contacts: 4 normally open
• Normally closed main contacts: 0
• - Auxiliary contacts: 4NO
• - Coil voltage: 24 V AC
• - Frame/Series: S00 / SIRIUS 3RT23
• - Contactor style: IEC
• - Electrical connection: Screws
• - Embedded surge suppressor: No
• - Enclosure: No Enclosure
• IP rating: IP20
• - Phase: 3
• Frequency: 50/60 Hz
• - Max operating watts: 4 kW (400V, AC-4)
• 6 kW (400V, AC-3)
• - Full load amps: Inductive 12 A
• Resistive 20 A
• - Horsepower ratings: 1 hp (230V, 1-phase)
• 1/3 hp (120V, 1-phase)
• 2 hp (208V, 3-phase)
• 3 hp (240V, 3-phase)
• 5 hp (480V, 3-phase)
• 7.5 hp (575V, 3-phase)
• - Dimensions (approx.): Width 1.77 in
• Height 3.08 in
• Depth 2.45 in
• - Mounting: DIN Rail, Surface
• - Mounting hole diameter: 0.20 in
• distance (height) 1.97 in
• distance (width) 1.38 in
• - Includes: S00 Frame
• - NEMA rating: No Enclosure
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Reversing: No
• - Number of auxiliary contacts: 4
