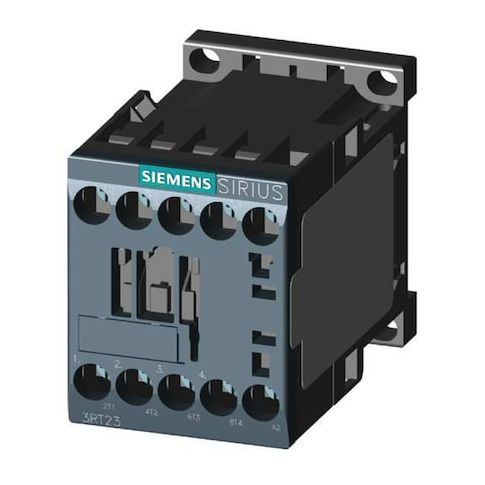

IEC Magnetic Contactor, 4NO, 24V AC, 4 P, Non-Reversing, Screw MPN:3RT23161AB00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and switching electrical circuits in various industrial applications. With its 4-pole, non-reversing design, it can be used to control motors, pumps, and other equipment in 3-phase systems. The device features four normally open main contacts and four auxiliary contacts, making it suitable for a wide range of applications, including motor control, lighting control, and power distribution. Its compact design and easy installation make it an ideal choice for use in control panels, switchgear, and other electrical systems.
Top product features:
- The Siemens IEC Magnetic Contactor has four normally open main contacts.
- It operates using a 24 V AC electromagnetic coil.
- It is configured for three-phase systems with a frequency of 50/60 Hz.
Top product applications:
- Motor Starter
- Industrial Automation
- Control Panel
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing, 24 V AC coil device rated for operation within the specified IEC standards. It is part of the SIRIUS 3RT23 family and uses a 24 V AC electromagnetic coil to operate four normally open main contacts and four NO auxiliary contacts. The unit is configured for three-phase systems (3-phase, 50/60 Hz) with a frame size of S00 and can be mounted on a DIN rail or a flat surface. It does not include an enclosure
- ensure proper installation according to applicable safety guidelines, and has an IP20 rating, with screw-type terminations.
- Coil Voltage: 24 V AC
- - Action: Non-Reversing
- - Poles: 4
- - Main Contacts: 4 NO
- - Auxiliary Contacts: 4 NO
- - Reversing: No
- - Frame Size: S00
- - Series: SIRIUS 3RT23
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection Type: Screw
- - Frequency: 50/60 Hz
- - Phase: 3
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Conforms to the specifications of the S00 frame size as per product documentation
- - Mounting Hole Diameter: 0.20 in
- - Mounting Hole Distance (Height): 1.97 in
- - Mounting Hole Distance (Width): 1.38 in
- - Overall Depth/Height/Width: 3.2 in / 2.55 in / 1.77 in
- - Maximum Operating Watts: 4 kW (at 400 V, AC-4 and AC-3)
- - Full Load Amps (Inductive/Resistive): 9 A / 18 A
- - Watts Loss: 1.1 W
- - Embedded Surge Suppressor: No
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.97
- Package Width: 2.42
- Package Height: 3.05
- Package Weight: 0.51
