240VAC Reversing Magnetic Contactor 3P 90A NEMA 3 MPN:43HP32AG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6370987

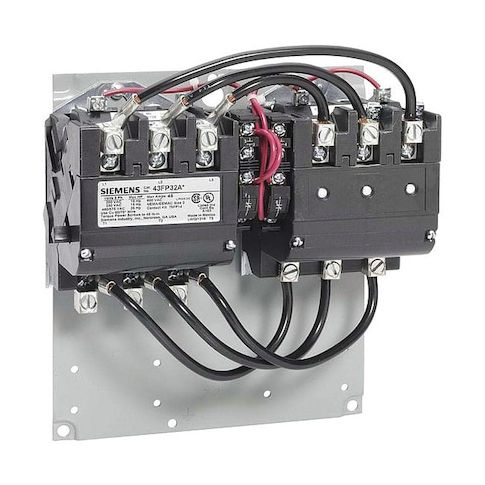

240VAC Reversing Magnetic Contactor 3P 90A NEMA 3
The Siemens 240VAC Reversing Magnetic Contactor is a reliable and efficient solution for industrial applications requiring high current handling and reversing capability. This 3P 90A contactor is designed for use in harsh environments and features a NEMA 3 enclosure rating. With a wide range of auxiliary contact options and a robust screw terminal connection, this contactor is ideal for use in conveyor systems, pumps, and other machinery that requires frequent direction changes. Its high current rating and reliable operation make it a valuable addition to any industrial control system.
Top product features:
- Reversing Capability allows the product to switch direction of operation
- Auxiliary Contact Form 2NO/2NC provides two normally open and two normally closed contacts for additional control and monitoring
- Terminal Connection Type Screw Terminals enables easy and secure wiring connections
Top product applications:
- Motor control for industrial machinery
- Automation of conveyor systems
- Control of large industrial fans or pumps
NEMA Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 190-220/220-240V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Full Load Current - Resistive Not Rated, Reversing Capability Reversing, Overall Height 11.44 in, Overall Width 10.94 in, Auxiliary Contact Module Capacity 7, Terminal Connection Type Screw Terminals, Mounting Style Surface, Series 43, Number of Auxillary Contacts 4, Contactor Style NEMA
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.50
- Package Width: 12.50
- Package Height: 8.00
- Package Weight: 13.32
