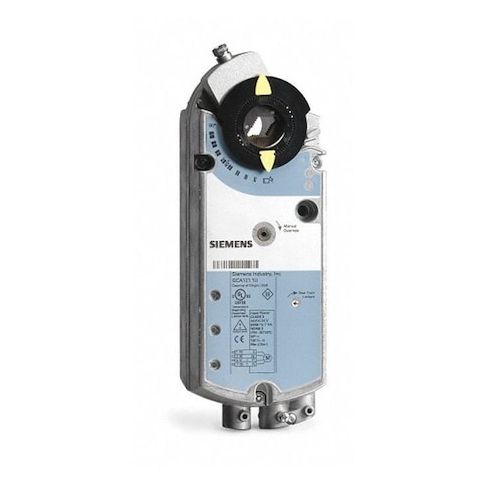

Electronic Damper Actuator, 2 Position MPN:GCA121.1U
Electronic Damper Actuator, 2 Position
The Siemens Electronic Damper Actuator is a reliable and efficient solution for building automation systems, ideal for applications requiring precise temperature control. Its 2-position design allows for easy switching between open and closed positions, while its 160 in-lb rated torque ensures smooth and consistent operation. With a spring return feature and self-centering shaft coupling, this actuator provides long-lasting performance and reduced maintenance. Compatible with a wide range of building automation systems, it's perfect for use in commercial and industrial settings, including HVAC, lighting control, and security systems, where precise temperature control is crucial.
Top product features:
- Self-Centering Shaft Coupling allows for easy installation and maintenance by ensuring proper alignment of the actuator.
- Spring Return feature enables the actuator to return to its original position automatically when power is removed.
- Output Signal range of 0 to 10V DC allows for precise control and communication with building automation systems.
Top product applications:
- Building Automation Systems
- Valve Application Damper
- Industrial Automation Systems
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 160 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Mounting Type Direct Mount, Maximum Operating Temperature 130 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on April 3, 2026 11:27am UTC
Category: HVACR and Appliance Controls
