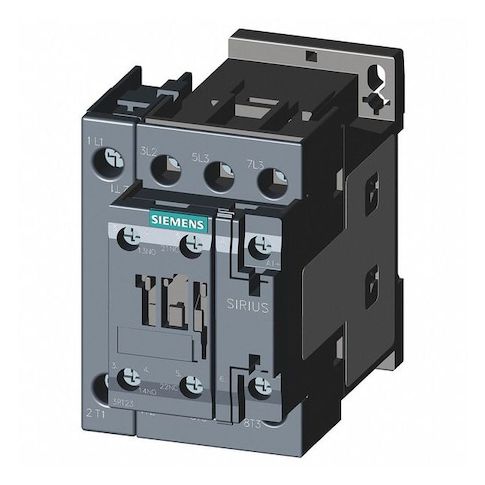

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw MPN:3RT23271BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient device for switching power circuits in a variety of applications. Suitable for use in three-phase systems, this 4-pole, non-reversing contactor is ideal for industrial control systems, automation, and power distribution. Its 24V DC coil and 1NO/1NC auxiliary contacts provide precise control and flexibility. With a high mechanical durability of 10,000,000 cycles and a maximum operating temperature of 140°F, this contactor is designed to withstand demanding industrial environments. Its compact design and DIN Rail mounting make it easy to integrate into existing systems, making it an excellent choice for a wide range of applications.
Top product features:
- The Siemens IEC Magnetic Contactor includes 2 auxiliary contacts configured as 1NO/1NC.
- It is rated for operation within three-phase systems.
- It has a non-reversing action.
Top product applications:
- Motor Control Circuits
- Motor Protection Circuits
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing device with a 24 V DC coil rated for switching power circuits. It includes 2 auxiliary contacts configured as 1NO/1NC and is part of the SIRIUS 3RT23 family (frame S0). The unit uses screw terminals
- it does not include an embedded surge suppressor or enclosure
- it has an IP20 rating. It is rated for operation within three-phase systems and supports mounting on DIN Rail or surfaces in a vertical orientation.
Key features
- - Coil Voltage: 24 V DC
- - Action: Non-Reversing
- - Reversing: No
- - Poles/Contacts: 4 poles
- Main contacts normally open: 4
- - Auxiliary contacts: 2 total
- Configuration: 1NO/1NC
- Form: 1NC/1NO
- Includes auxiliary contacts: Yes
- - Frame/Series/Code: S0
- Frame Size: S0
- Series: SIRIUS 3RT23
- - Electrical connection: Screws
- - Embedded Surge Suppressor: No
- - Enclosure: No Enclosure
- NEMA Rating: No Enclosure
- - IP Rating: IP20
- - Mounting: DIN Rail, Surface
- Mounting Hole Diameter: 0.19 in
- Mounting Hole Distance (Height/Width): 2.95 in / 1.38 in
- Mounting Position: Vertical
- - Phase: 3
- - Full Load Amps: Inductive 15.5 A
- Resistive 42 A
- - HP Ratings: 1 hp @ 120V (1 Phase)
- 3 hp @ 230V (1 Phase)
- 3 hp @ 240V (1 Phase)
- 5 hp @ 208V (3 Phase)
- 5 hp @ 240V (3 Phase)
- 10 hp @ 480V (3 Phase)
- 15 hp @ 575V (3 Phase)
- - Max Operating Watts: 8 kW at 400V (AC-3/AC-4)
- - Temperature: Max 140°F
- Min -13°F
- - Mechanical Durability: 10,000,000 cycles
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Width/Height/Depth: Width 2.36 in
- Height 5.12 in
- Overall Width 3.04 in
- Overall Depth 3.67 in
- Depth 3.82 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.90
- Package Height: 3.00
- Package Weight: 1.50
